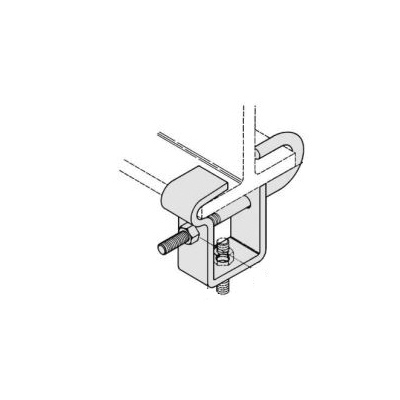

PHD 6350037PL 635 Adjustable Center Load Beam Clamp, 3/8 in Rod, 1/2 in THK Flange, 300 lb Load, Low Carbon Steel, Electro-Galvanized
Sku #84874302295
MFG #6350037PL
Attributes
| Type: | Adjustable |
| Rod Size: | 3/8 in |
| Flange Width: | 3-1/2 to 8 in |
| Series: | 635 |
| Flange Thickness: | 1/2 in |
| Load Capacity: | 300 lb |
- Designed to be used in the suspension of a hanger rod from an I-Beam
- The clamp is adjustable from 3-1/2 to 8 in and can be used with flange up to 1/2 in Thk
- For proper installation tighten hex nut until lock washer is completely flat
- Low carbon steel
- ANSI/SP 58/69 (Type 27)|Federal A-A-1192A (Type 27)
