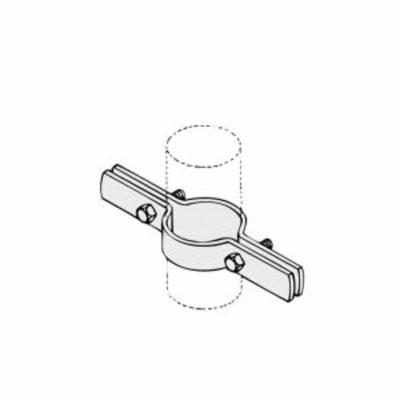

PHD 554 0350PV FIG 554 Copper Tubing Riser Clamp, 3-1/2 in Pipe, 3/8 in Bolt, 300 lb Load, Low Carbon Steel, Copper Epoxy With PVC Coating, Domestic
Sku #84874302137
MFG #554 0350PV
Attributes
| Series: | FIG 554 |
| Bolt Diameter: | 3/8 in |
| Torque Rating: | 19 ft-lb |
| Pipe Size: | 3-1/2 in |
| Load Capacity: | 300 lb |
| Material: | Low Carbon Steel |
- ANSI/SP-69 and SP-58 (Type 8)|Federal A-A-1192A (Type 8)
- Designed for supporting and stabilizing vertical tubing runs
- The PVC coating on Fig 554 protects the tube from the metal surface of the clamp
