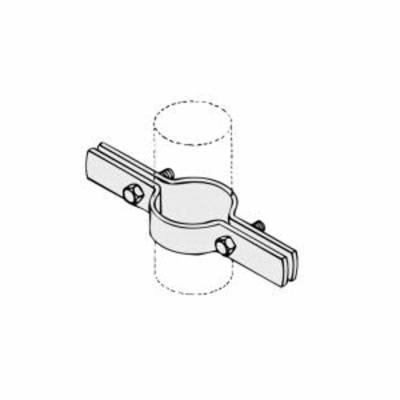

PHD 553 0350PV FIG 553 Riser Clamp, 3-1/2 in Pipe, 3/8 x 1-1/2 in Bolt, 600 lb Load, Low Carbon Steel, PVC Coated, Domestic
Sku #84874302116
MFG #553 0350PV
Attributes
| Series: | FIG 553 |
| Bolt Diameter: | 3/8 x 1-1/2 in |
| Torque Rating: | 19 ft-lb |
| Pipe Size: | 3-1/2 in |
| Load Capacity: | 600 lb |
| Material: | Low Carbon Steel |
- Designed for supporting and stabilizing vertical pipe runs
- The PVC coating on Fig 553 protects the pipe from the metal surface of the clamp
- This product is not intended for use with hanger rods
- Clamp is designed for standard iron pipe OD and must be considered when sizing other types of piping
- ANSI/SP-69 and SP-58 (Type 8)|BAA Compliant|Federal A-A-1192A (Type 8)|FM Approved|UL Listed
