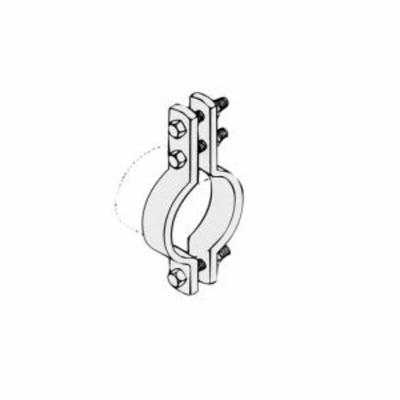

PHD 526 1400PL FIG 526 Heavy Duty Double Bolt Pipe Clamp, 14 in Pipe/Tube, 9500 lb Load, Low Carbon Steel, Plain, Domestic
Sku #84874302063
MFG #526 1400PL
Attributes
| Type: | Heavy Duty Double Bolt |
| Pipe/Tube Size: | 14 in |
| Material: | Low Carbon Steel |
| Series: | FIG 526 |
| Load Capacity: | 9500 lb |
| Finish: | Plain |
- The increased material and bolt sizes allow Fig 526 to be used in applications where heavier loads will be encountered
- Normally used in conjunction with Fig 35 weldless eye nut or Fig 55 welded eye rod to allow flexibility at the rod attachment
- The clamp can be used with up to 4 in of insulation and temperatures up to 750 deg F
- ANSI/SP-69 and SP-58 (Type 3)|BAA Compliant|Federal A-A-1192A (Type 3)
