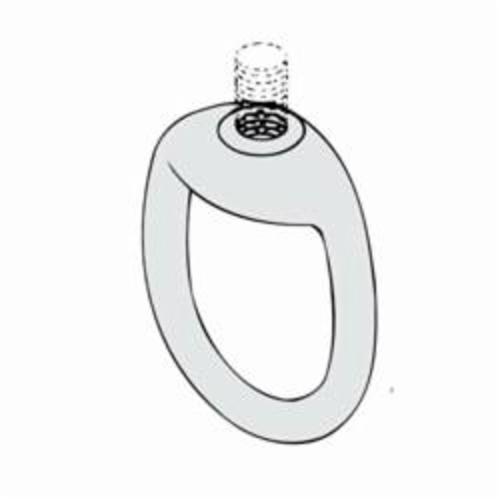

PHD 035 0150PL FIG 35 Weldless Eye Nut, 1-1/2 in, Forged Steel
Sku #84874301366
MFG #035 0150PL
Attributes
| Type: | Weldless |
| Thread Size: | 1-1/2 in |
| Material: | Forged Steel |
| Series: | FIG 35 |
| Thread Direction: | Right |
| Finish: | Plain |
- Maximum recommended load 13800 lb at 650 deg F
- Maximum recommended load 10807 lb at 750 deg F
- Supports loads equal to the full limitation of the hanger rod
- ANSI/SP 69/58 (Type 17)|Federal A-A-1192A (Type 17)
- For use in high strength and high temperature piping applications
