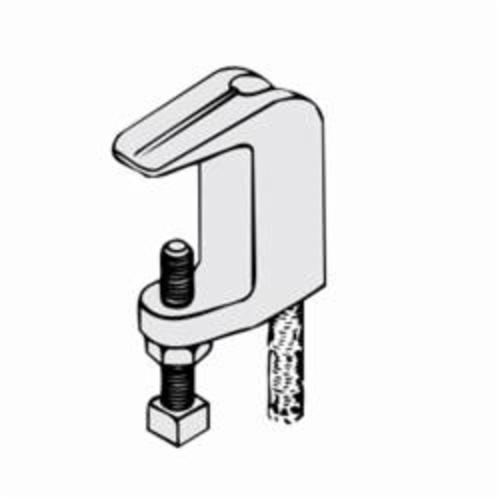

PHD 360 1075EG Wide Mouth Beam Clamp, 3/4 in Rod, 900 lb Load, Malleable Iron, Electro-Galvanized
Sku #84874300307
MFG #360 1075EG
Attributes
| Type: | Wide Mouth |
| Rod Size: | 3/4 in |
| Suitable For Use With: | 8 in Pipe |
| Series: | FIG 360 |
| Load Capacity: | 900 lb |
| Material: | Malleable Iron |
- Malleable iron with hardened steel cup point set screw and locknut
- Import wide mouth beam clamp
- When a torque wrench is unavailable, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added
- Underwriters laboratories listed in the US (UL), Canada (CUL)
- Caution should be taken not to over tighten the set screw
- 3/8 in set screw
- 60 in-lb torque set screw
- ANSI/SP 69/58 (Type 19)|cULus Listed|Federal A-A-1192A (Type 19)|FM Approved
