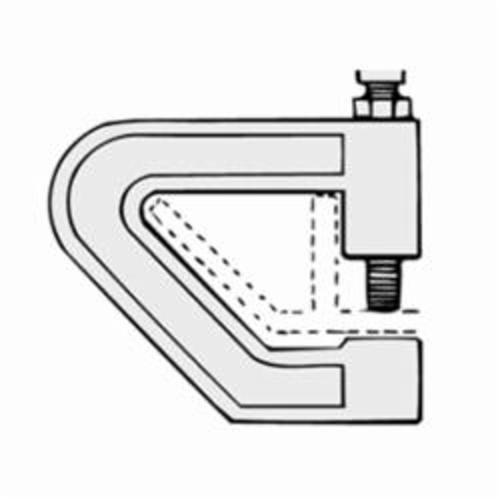

PHD 290 0037PL Purlin Clamp, 3/8 in Rod, 400 lb Load, Malleable Iron
Sku #84874300295
MFG #290 0037PL
Attributes
| Series: | FIG 290 |
| Load Capacity: | 400 lb |
| Material: | Malleable Iron |
| Rod Diameter: | 3/8 in |
| Suitable For Use With: | 4 in Pipe |
| Finish: | Plain |
- Underwriters' laboratories listed in the US (UL) and factory mutual approved
- When a torque wrench is unavailable, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added
- Caution should be taken not to over tighten the set screw
- Hardened steel cup point set screw and locknut
- 60 in-lb torque
- ANSI/SP 69/58 (Type 23)|Federal A-A-1192A (Type 23)|UL Listed
