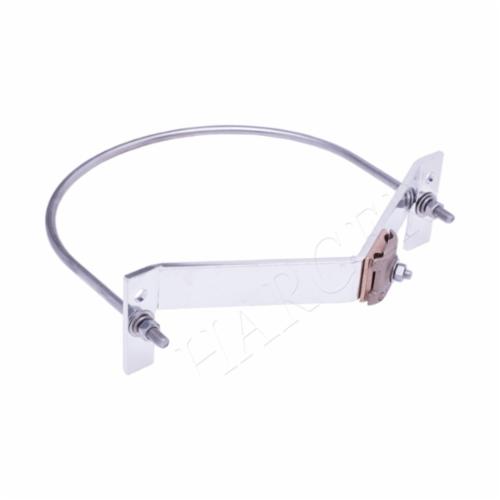

Harger® UPC8C Universal Pipe Clamp, 8 in Pipe, Copper, Electro-Plated Tin
Sku #80847502373
MFG #UPC8C
Attributes
| Type: | Universal |
| Specifications: | 210 in-lb Torque |
| Finish: | Electro-Plated Tin |
| Pipe Size: | 8 in |
| Material: | Copper |
| Country of Origin: | US |
- Lug ends are 1/4 in x 1 in and have holes that are 7/16 in diameter 1 in on centre spacing
- Provides bi-directional grounding capabilities making it the perfect connection for grounding large diameter pipes
- Clamps include mechanical connector to connect ground conductors No. 6 AWG thru 250 MCM
- Clamps can also be connected to ground conductors via exothermic connections and/or standard compression lugs
- Provides 1-1/2 in of contact area to ensure sufficient electrical contact for both ground fault and lightning current
- For conductors larger than 250 MCM exothermically weld to the clamp
- Rated for direct burial
- Exothermic connection
- Conductive tinned copper material
- Stainless Steel Hardware
- UL 467|UL 96|RoHS Compliant
