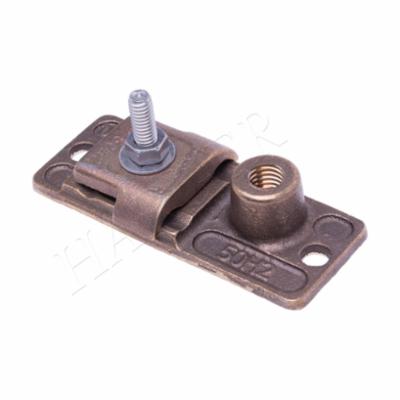

Harger® A15112I Narrow Internally Threaded Hub Base, Horizontal Base, 1/2 in Dia, Aluminum
Sku #80847500482
MFG #A15112I
Attributes
| Type: | Narrow Internally |
| Diameter: | 1/2 in |
| Material: | Aluminum |
| Base Type: | Horizontal |
| Connection Type: | Thread |
| Country of Origin: | US |
- UL 96|RoHS Compliant
- 1-3/4 x 4 in base is ideal for use where mounting area is limited such as on skylight frames or narrow extruded shapes
- Two mounting holes are provided for secure mounting using machine or self tapping screw
- At least two mounting holes that will accept a 10 to 24 AWG or larger bolt or screw shall be provided in the support so that it can be permanently and rigidly fastened
- Narrow internally threaded hub base
- A threaded hub provided for the attachment of the air terminal shall have at least five full threads and if internally threaded, shall have a wall thickness of not less than 1/16 in (1.6 mm) measured at the base of the threads
