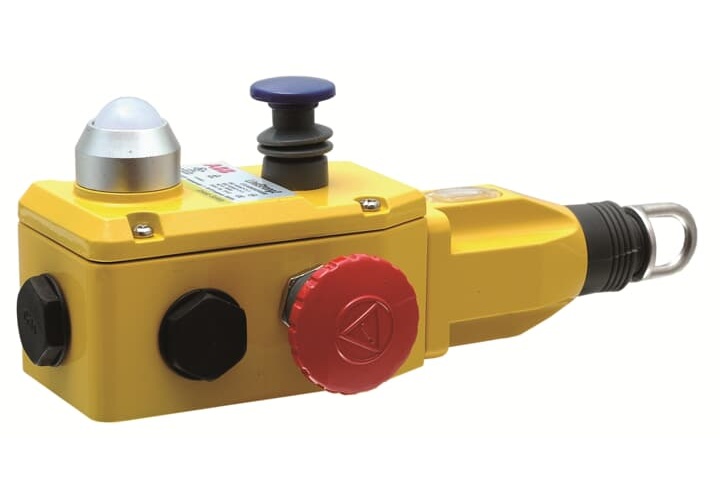

ABB 2TLA050202R1232 LineStrong2 Standard Duty Rope Pull Switch, 240 V AC, 3 A, 4 Poles, 2NO-2NC Contact
Sku #80432583775
MFG #2TLA050202R1232
Attributes
| Type: | Standard Duty |
| Voltage Rating: | 240 V AC |
| Action: | Snap |
| Series: | LineStrong2 |
| Amperage Rating: | 3 A |
| Number of Poles: | 4 |
- They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the applications
- A bi-color LED is available to show switch status from a distance and they have 4-pole contact blocks to ensure flexibility with all modern control applications
- Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for inside or outside use
- They can be supplied with a mushroom type emergency stop button which can be fitted to the side of the switch to offer an extra traditional emergency stop function close to the switch or can be fitted later after installation without any extra wiring
- Designed specifically to withstand the tough environments found in the food and pharmaceutical industries
- LineStrong2 is a general duty robust die cast safety rope pull switch designed to protect conveyor lengths where protection is required up to 80 m using two switches or up to 60 m using a single switch
- BAA Compliant|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508
- For designed to protect long conveyor lengths
