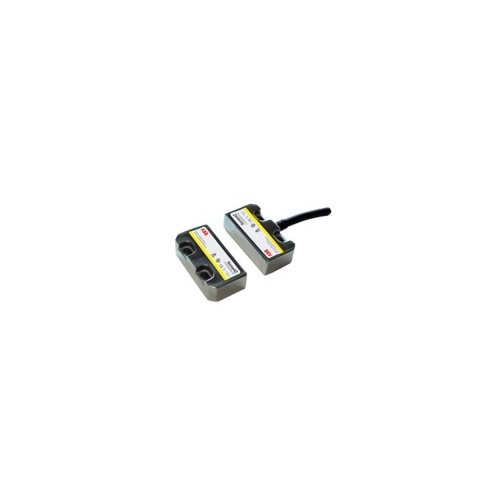

ABB Jokab Safety® 2TLA050072R2120 Sense 4Z Power Non-Contact Switch With Quick-Connect Cable, 50 mm L x 25.5 mm W x 13 mm H Magnetic Actuator, 0.2 A at 24 V DC/0.1 A at 250 V AC Contact, 1NO-2NC Contact
Sku #80432583635
MFG #2TLA050072R2120
Attributes
| Type: | Non-Contact |
| Actuator Type: | Magnetic |
| Contact Rating: | 0.2 A at 24 V DC/0.1 A at 250 V AC |
| Series: | Sense 4Z Power |
| Actuator Size: | 50 mm L x 25.5 mm W x 13 mm H |
| Contact Configuration: | 1NO-2NC |
- Wide 12 mm sensing - high tolerance to misalignment
- Specifically designed for food processing applications - 316 stainless steel mirror polished finish (Ra4)
- Durable polyester
- Long life high switching capability to 1 A
- Quick connect versions
- Universal fitting - established 22 mm fixing footprint suitable for most general applications
- Can be high pressure hosed at high temperature - IP69K
- Withstands environment where high humidity or hose down is required
- Universal housing - 22 mm fixing hole center - 50 mm wide body
- For CIP and SIP cleaning - food splash zones EHEDG guidelines
- BAA Compliant|CE Certified|TUV Certified|UL Listed|CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-3|EN 954-1|UL 508
