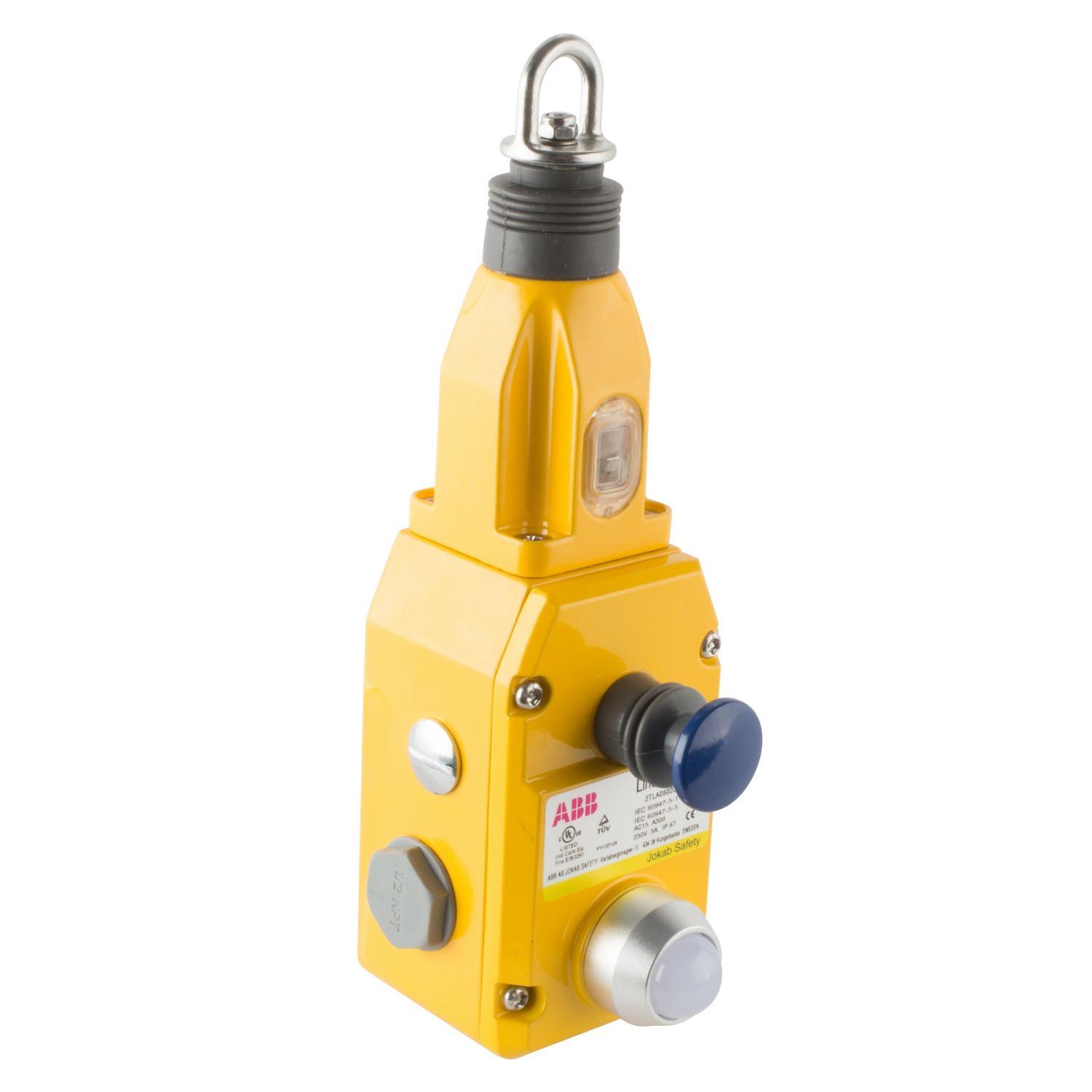

ABB Jokab Safety 2TLA050202R1332 LineStrong2 Standard Duty Safety Rope Pull Switch With NPT Connector, Emergency Stop and 24 VDC LED, 240 V AC, 3 A, 4 Poles, 2NO-2NC Contact
Sku #80432560966
MFG #2TLA050202R1332
Attributes
| Type: | Standard Duty |
| Voltage Rating: | 240 V AC |
| Action: | Snap |
| Series: | LineStrong2 |
| Amperage Rating: | 3 A |
| Number of Poles: | 4 |
- LineStrong2 is a general duty robust die cast safety rope pull switch designed to protect conveyor lengths where protection is required up to 80 m using two switches or up to 60 m using a single switch
- They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the applications
- They can be supplied with a mushroom type emergency stop button which can be fitted to the side of the switch to offer an extra traditional emergency stop function close to the switch or can be fitted later after installation without any extra wiring
- A bi-color LED is available to show switch status from a distance and they have 4-pole contact blocks to ensure flexibility with all modern control applications
- Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for inside or outside use
- CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508
