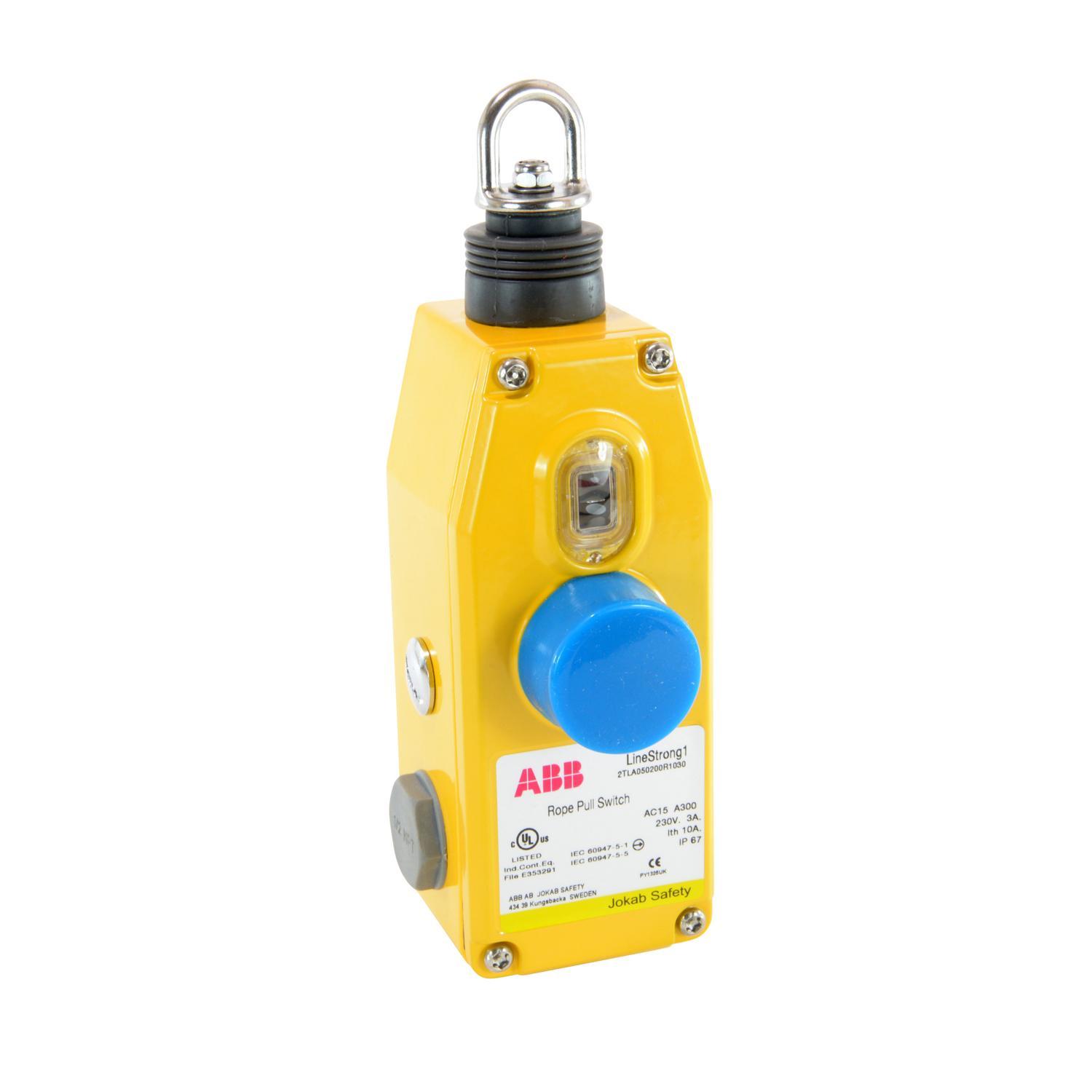

ABB Jokab Safety 2TLA050200R1030 LineStrong1 Mini Duty Safety Rope Pull Switch With NPT Connector, 240 V AC, 3 A, 4 Poles, 2NO-2NC Contact
Sku #80432560963
MFG #2TLA050200R1030
Attributes
| Type: | Mini Duty |
| Voltage Rating: | 240 V AC |
| Action: | Snap |
| Series: | LineStrong1 |
| Amperage Rating: | 3 A |
| Number of Poles: | 4 |
- LineStrong1 is a compact, yet robust die cast mini-duty safety rope pull switch designed to protect short conveyor lengths where protection is required up to 50 m using two switches or up to 30 m using a single switch
- They provide reliable, cost effective safety solutions for conveyor systems and can be enhanced by adding external mushroom type E stop at the switch or bi-color LED available to show switch status from a distance
- They have 4-pole contact to ensure flexibility with all modern control applications
- Rugged integral sealing bellows means they can be high pressure hosed
- CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508
