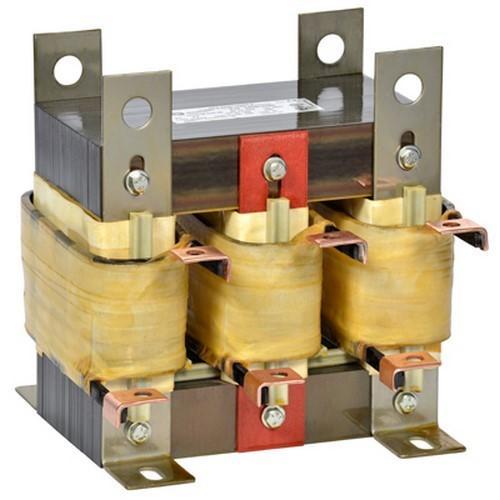

HPS CRX0240BC Centurion® R Core and Coil Line Reactor, 480 V AC, 240 A, 200 hp, 0.16 mH, 5 % Impedance, 12-1/2 in 13-3/4 in W
Sku #80342311844
MFG #CRX0240BC
Attributes
| Type: | Core and Coil |
| Voltage Rating: | 480 V AC |
| Horsepower: | 200 hp |
| Series: | Centurion® R |
| Amperage Rating: | 240 A |
| Phase: | 3 |
- RoHS Compliant|UL 508/File #E61431|CSA C22.2 #47/C9 File #LR3902|CE Certified|IEC 61558-2-20:2000/61558-2-20
- The impedance of the reactors is accurately controlled by maintaining the core gaps in the flux path
- In some HP ranges, bobbins are used to provide exceptional mechanical strength and increase the product reliability
- Every reactor is vacuum pressure impregnated (VPI) with VT (vinyl-toluene) polyester resin to minimize audible noise
- Rugged steel enclosures with UL 50 ANSI 61 gray paint
- Finger proof terminal blocks are provided on rated currents of approximately below 65 A termination
- Terminal pads are supplied on approximately 65 A and above, terminal pads are brazed to ensure electrical integrity
- Mitigate nuisance tripping
- Extend the life of switching components and motors
- Reduce audible motor noise and motor operating temperature
- Mitigate the effect of long lead length
- Minimize harmonic distortion
- Reduce line notching
- Innovative design showcases a unique blend of performance and economy to protect your VFD, motor, capacitors and electrical system from harmonics, damage and nuisance tripping
- Noise level between 58 to 75 dBA
- Oil and Gas, Irrigation Fields, Wastewater, Food Processing, Pharmaceutical, Steel, Pulp and Paper, HVAC and Automotive
