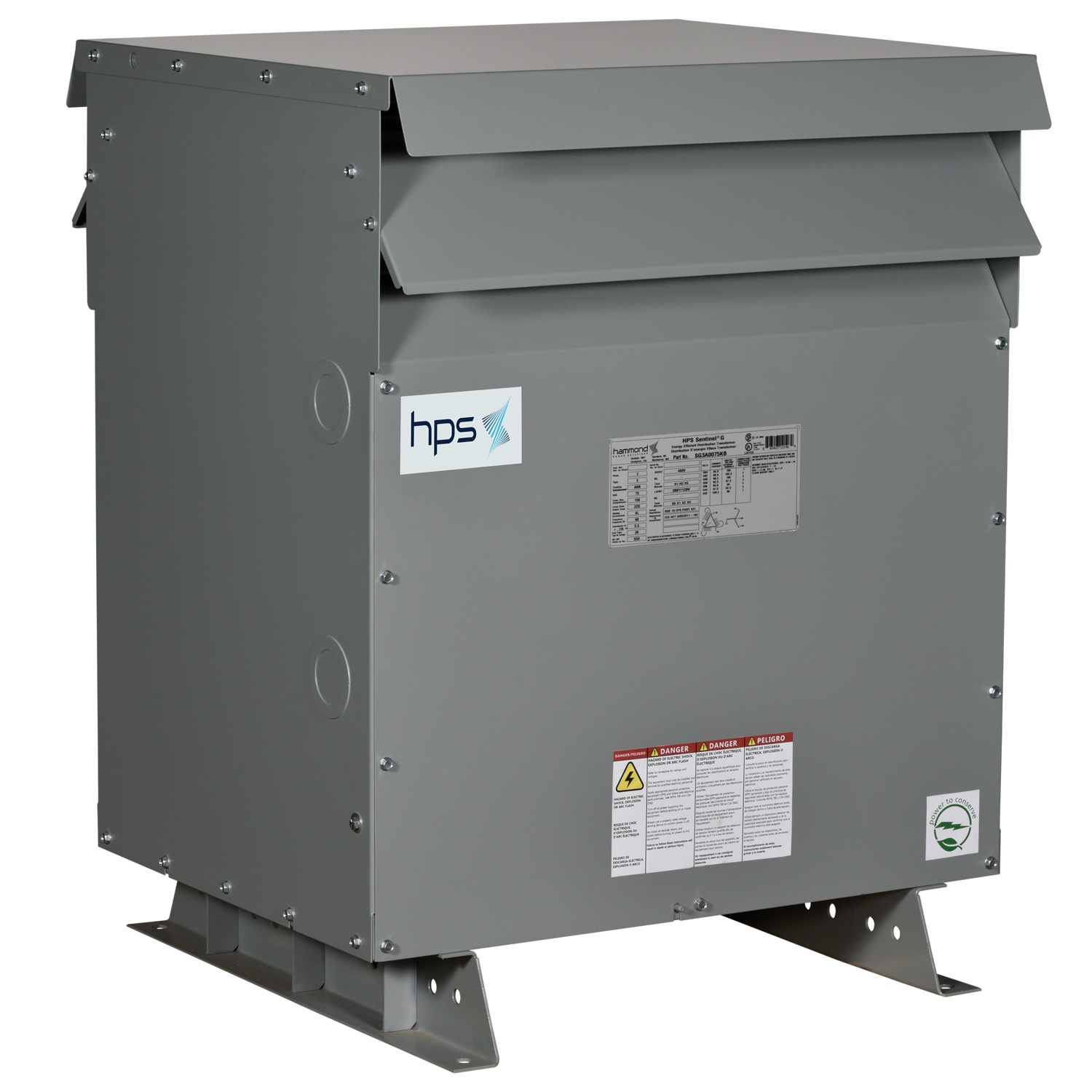

HPS DM145JJ Drive Isolation Transformer, 460 VAC Primary, 460Y V AC Secondary, 145 kVA Power Rating, 60 Hz, 3 Phase
Sku #80342300389
MFG #DM145JJ
Attributes
| Primary Voltage: | 460 V AC |
| Power Rating: | 145 kVA |
| Phase: | 3 |
| Secondary Voltage: | 460Y V AC |
| Frequency Rating: | 60 Hz |
| Connection Type: | Lug/Pad |
- The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load
- The windings are designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds
- Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings
- Standard sizes range from 5 to 600 HP in six standard voltages
- Variable Speed Drives Applications
- UL Listed|CSA Certified|RoHS Compliant
