Sku #78656409660
MFG #8ATC2PSB
Attributes
| Type: | Pre-Wired Recessed |
| Hole Size: | 8 in |
| Number of Gangs: | 5 |
| Series: | Evolution™ 8AT |
| Knockout Size: | 3/4 in |
| Device Type: | Fire-Rated |

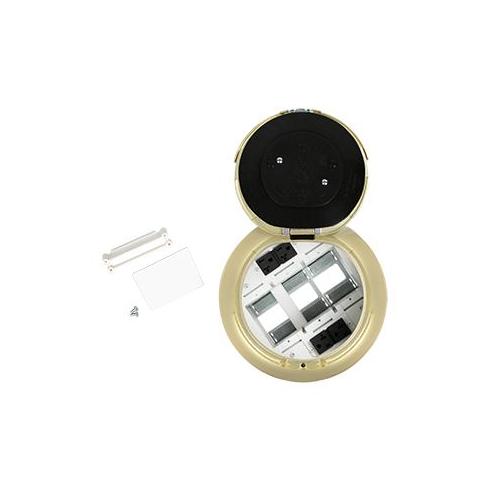

- Pre-wired assembly save on labor with a completely assembled, Pre-wired poke-thru with every power receptacle already installed
- Recessed devices all power, communications and AV devices are recessed below floor level, providing maximum protection and device longevity
- Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer
- Unique cover design - the cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
- Surface style cover assemblies - a surface style cover is for mounting on top of the finished floor surface, the surface cover is designed to be used for carpet, tile, wood, polished concrete, or terrazzo
- Open system for expanded compatibility - accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more
- Includes 3-gang opening designed to fit A/V devices, including wall plate style transmitters, like the Crestron DM/TX series, without any additional parts
- Plug load control up to 30 ft - tested with Pass & Seymour® wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
- Evolution™ series poke-thru devices use an intumescent material that maintains the fire rating of any floor for up to 2 hr
- The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
- Satin brass, satin nickel and brushed aluminum finishes offer a more durable, high end look with a tougher clear powder coated Ideal for high foot traffic environments
- https://www.youtube.com/watch?v=0YF0qQV6drE
- (2) Pre-Wired, Pre-Installed Proprietary 20 A Duplex Receptacle, (3) Open Compartment, (1) 5BLH 1/2-Gang Blank Housing, (3) 1PTHA 1-Gang Pass-Through Housing Assembly, (1) 575CHA 1/2-Gang 3/4 in Conduit Housing Assembly, (1) 8DIV 8 in Divider, Junction Box
- ARRA Compliant|Buy American Act Compliant|cULus File No. E2961 Guide QCIT|cULus Listed File No. R8209 Guide CEYY|Article No. 300-22 NEC|ADA Standard 4.5
- Commercial Office, Education, Healthcare, Hospitality, Entertainment, Retail, Kiosks, Meeting Rooms, Training Rooms, Classrooms, Commercial Buildings with Open Space Architecture, Commercial Kitchen, Wet/Damp Locations Applications
