Sku #78656408567

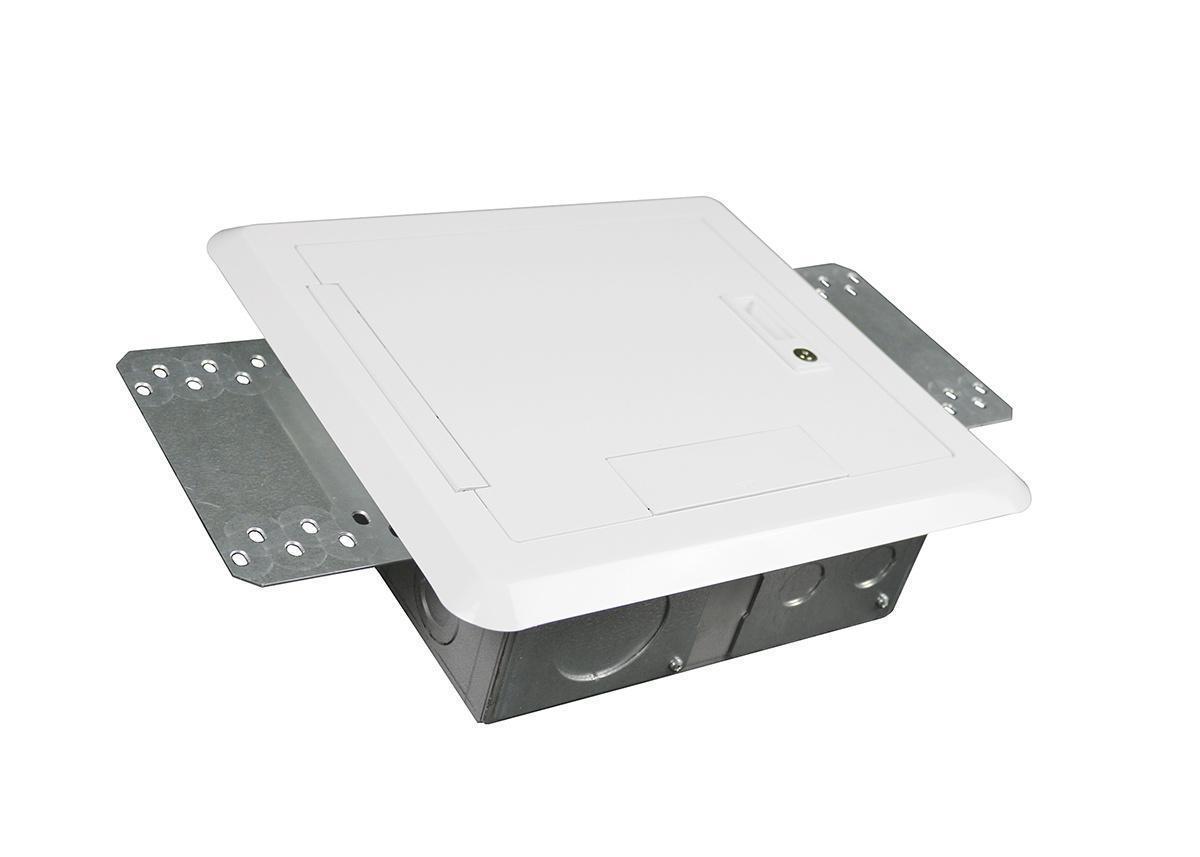

MFG #EHWB8-WH
Attributes
| Type: | Hinged Recessed |
| Number of Gangs: | 8 |
| Mounting Type: | Wall/Threaded |
| Series: | Evolution™ |
| Knockout Size: | 3/4 to 2 in |
| Capacity: | 113.8 cu-in |
- Available in both 4- and 8-gang versions to provide maximum flexibility
- Built-in tunnel and feed through capability allows service feeds to be fed through the box, reducing the number f feeds required to reduce installation time
- Cover opens a full 180 and can be painted to blend with room decor
- No proprietary plates simplifies ordering and installation
- Accepts Legrand AVIP devices, plus A/V devices from leading manufacturers
- 3 5/8 in 92mm of space behind device plates provides the extra depth needed for wiring larger A/V devices
- Accepts trade size service feeds from 3/4 in up to 2 in
- Knockout plates are removable and interchangeable, providing multiple options
- Can be installed in new work and old work installations
- New hardware not necessary
- Both boxes (4- and 8-gang) fit are designed to fit in 16 in opening between studs in standard 2 in x 4 in 51mm x 102mm wall
- Enclosure Base, (4) Knockout Plates, (2) Old Work Mounting Brackets, (2) New Work Mounting Brackets, (2) Device Brackets, (2) EHWB-DIV Removable Dividers , Temporary Cover, (22) #8-32 Screws, (4) #6-32 Screws, (2) Tunnel Dividers, (2) Filler Plates
- Open Space Wall Applications
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|Article No. 314.27 NEC|UL File No. E2961
