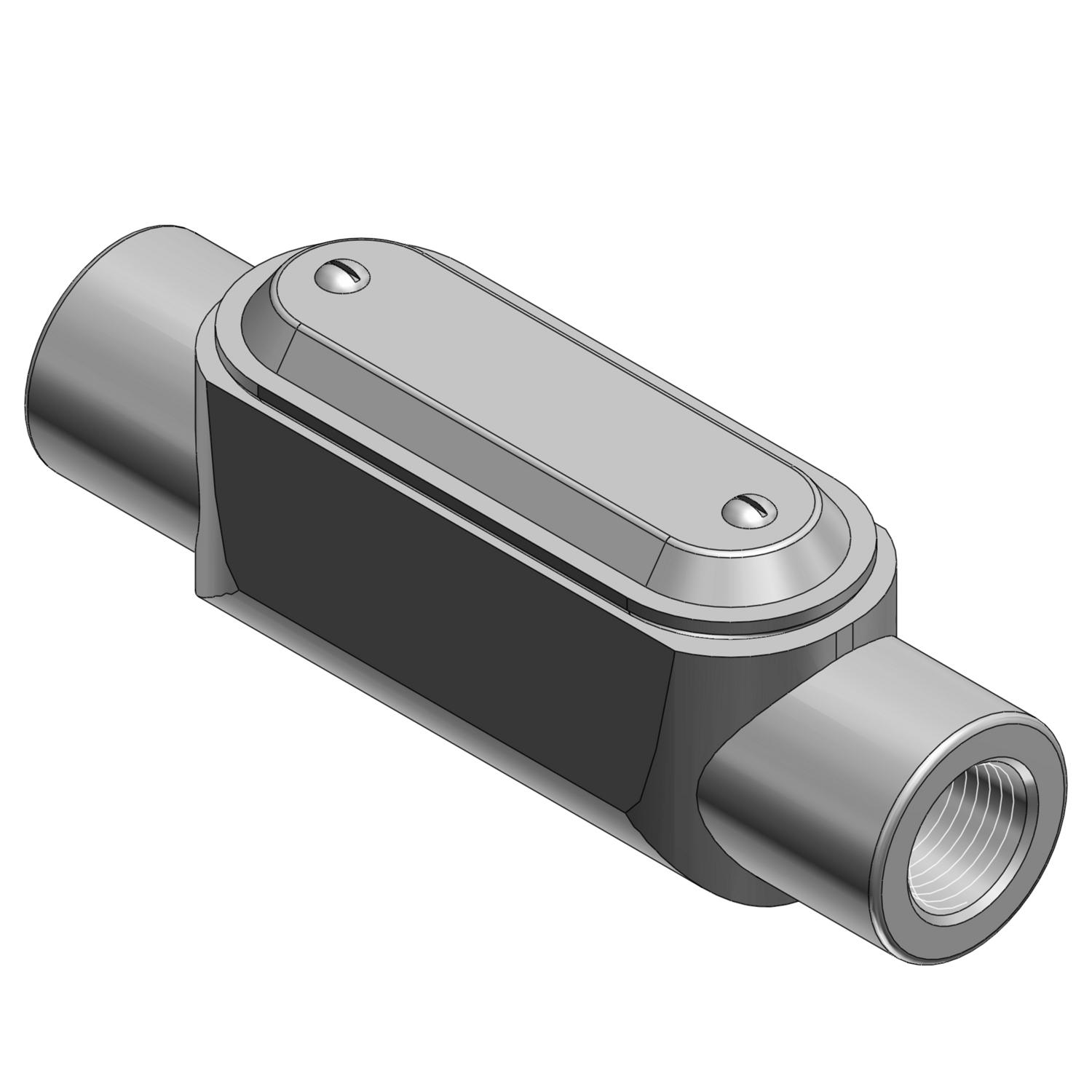

Sku #78621091682
MFG #C47CG-TB
Attributes
| Type: | Type C Pre-Assembled |
| Number of Hubs: | 2 |
| Form: | Form 7 |
| Hub Size: | 1-1/4 in |
| Capacity: | 18.8 cu-in |
| Connection Type: | Tapered NPT |
- Bluekote® teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Thru-feed design
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
- Cover and Gasket
- For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
- CSA Certified|UL File No. E2969
