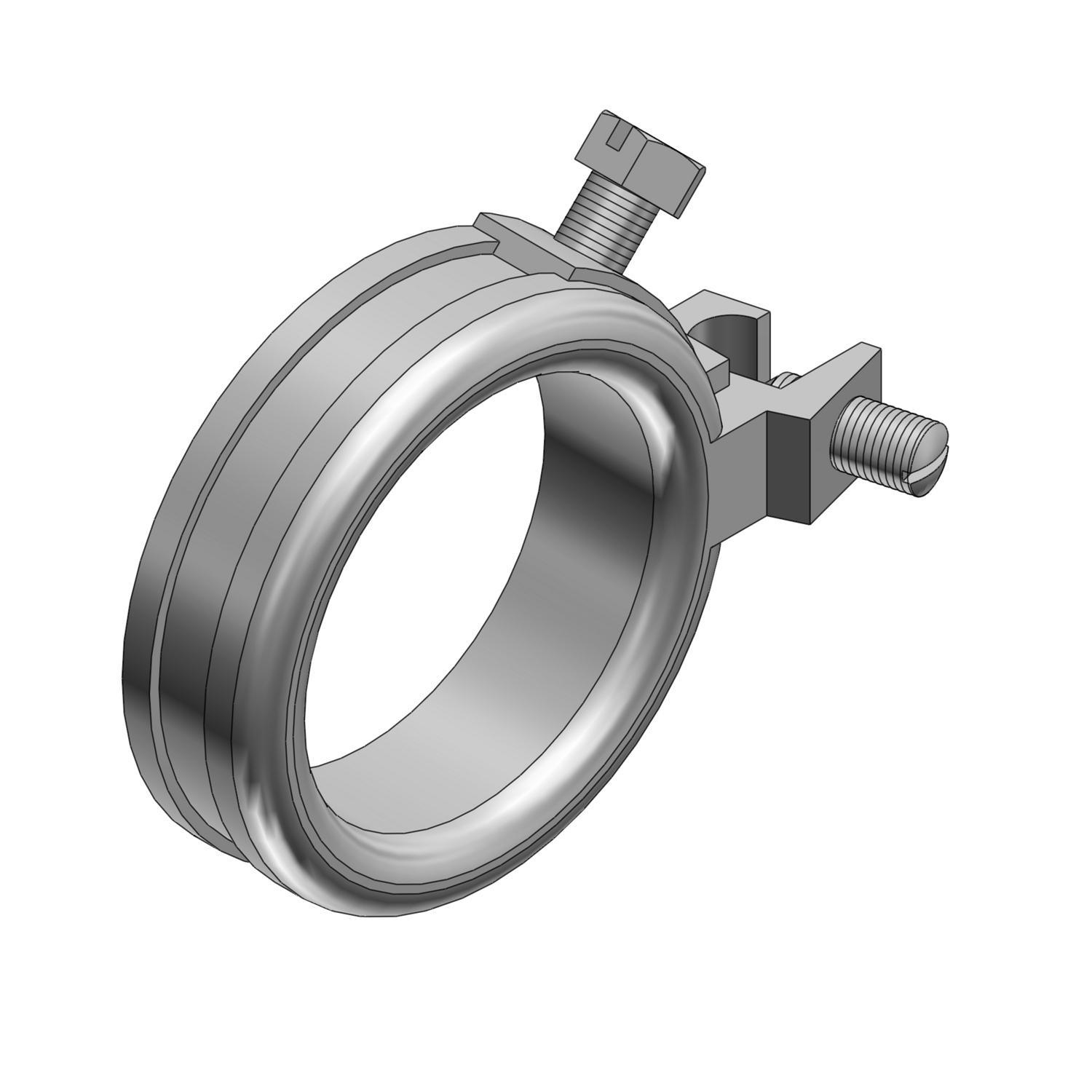

Sku #78621016274
MFG #BG300-6-40
Attributes
| AC Cable Size: | 6 to 4/0 AWG |
| Insulated/Non-Insulated: | Insulated |
| Mounting Type: | Threaded |
| Trade Size: | 3 in |
| Temperature Rating: | 302 deg F |
| Material: | Malleable Iron |
- For use with rigid/IMC conduit
- Mounting screw with nylon locking patch has a cone point to lock bushing securely in place
- Integral grounding lug enhances ground continuity
- Added ground wire range taking reduces inventory
- Accepts copper or aluminum ground wires
- Insulating nylon surface is 150 deg C rated and covers top of bushing, including lug corners
- Angle of lug screw improves accessibility when securing grounding wire
- Insulator surface features a rounded design to reduce drag and prevent abrasion during wire pulling
- Cast "threads" opposite the mounting screw tighten the fit during installation
- CSA C22.2 File No. 18.3/41|CSA Certified|UL 514B/467|UL File No. E3060
