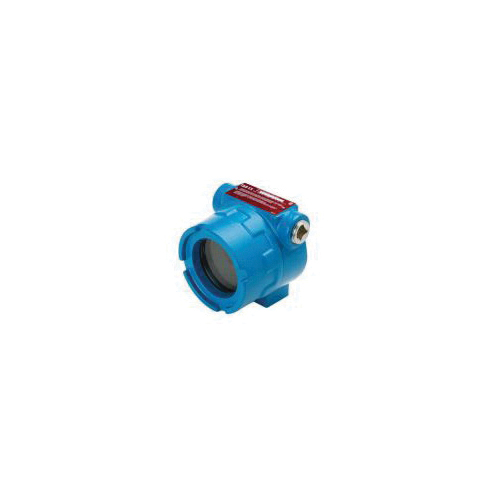

Sku #78621013040
MFG #XPIHSCDGC2
Attributes
| Type: | Single End Small Explosionproof |
| Length: | 5-3/4 in |
| Cover Type: | Dome Glass |
| Series: | XPIH |
| NEMA Rating: | NEMA 4X/7BCD/9EFG/IP66 |
| Cable Entry Size: | 1/2 in NPT |
- cULus Listed|CSA 22.2 File No. 30/25|UL 50|UL 1203|Class I Div 1 2 Group B C D|Class II Div 1 2 Group E F G|Class III
- XPIH explosionproof instrument housings provide dependable protection for meters, instruments, control devices and terminal blocks
- Offset feed-through hubs for greater interior space
- These housings carry NEMA 4X for watertight applications
- Cover opening inside diameter from 2-5/16 to 4-1/16 in
- To provide convenient access to conductors for maintenance and future system changes
- (4) 1/4-20 UNC hole
- Sand cast copper-free aluminum, nitrile rubber gasket, stainless steel hardware
- Meters, Instruments, Control Devices, Terminal Blocks and More, Hazardous and Corrosive Areas
