Sku #78621002449
MFG #2449
Attributes
| Trade Size: | 2 in |
| Cable Type: | Oval |
| Material: | Die Cast Zinc |
| Cable Openings: | 0.85 x 1.55 in to 1.062 x 1.765 in |
| Connection Type: | Thread |
| Finish: | Zinc Plated |

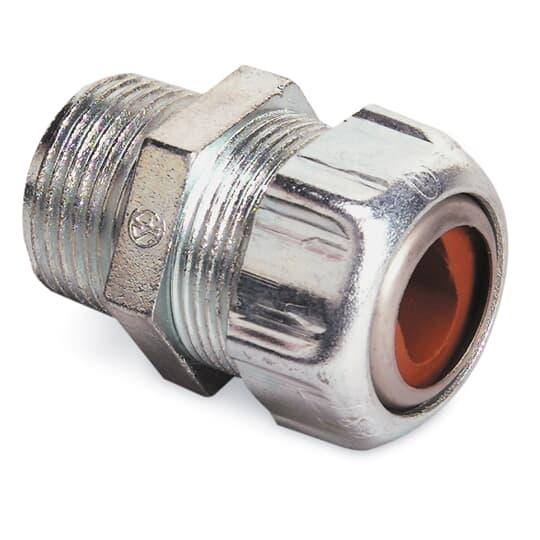

- Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
- Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
- Threads on the body are tapered for water sealing
- Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
- Rugged ribbed steel gland construction
- 2-13/32 in max body corners
- 11/16 in L thread
- 2-3/4 in max gland corners
- A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
- ANSI NFPA 70-2009|CSA 589/4484|CSA C22.2 File No. 18.3|Federal Specification H-28|NEMA FB-1|UL 514B File No. E15170
- For connecting underground feeder cables to a box or an enclosure
