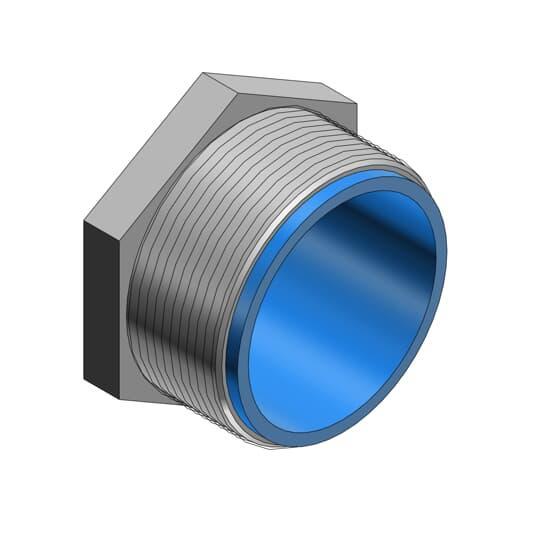

Sku #78621001951
MFG #1951
Attributes
| Type: | Bushed |
| Suitable For Use With: | Rigid/IMC Conduits |
| Finish: | Chromate Coated/Electro-Zinc Plated |
| Size: | 4 in |
| Material: | Malleable Iron |
| Dimensions: | 1-5/16 in Dia x 4-5/8 in L |
- ANSI C80.4|CSA C22.2 File No. 18.3|Federal Specification W-F-408|NEMA FB-1|NFPA 70-2008|UL 514B|UL File No. E23018
- For effectively bush factory or field punched, cut or drilled holes in metal boxes or enclosures and to couple boxes back to back
- Male NPS thread/hex head connection
- 1-13/16 in L thread
- Nylon insulator curled over to bush conductors entering/leaving at any angle
- Reduce wire pull effort, protect threads against damage in handling
- Rugged construction
