Sku #78621000192

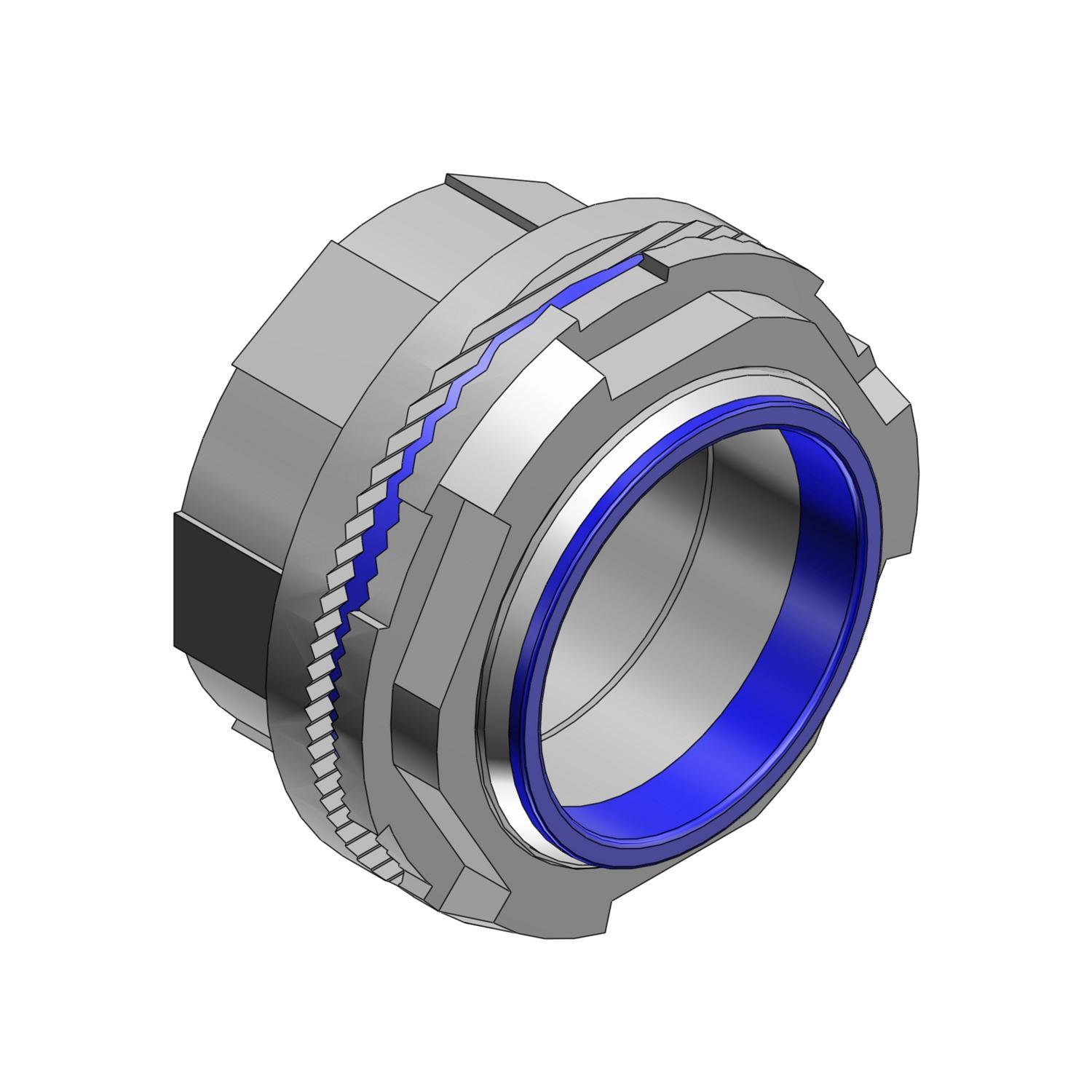

MFG #H200CP
Attributes
| Size: | 2 in |
| Material: | Zinc |
| Dimensions: | 3-1/4 in W x 1-15/16 in H |
| Suitable For Use With: | Rigid/IMC Conduits |
| Finish: | Polished Chrome |
| Country of Origin: | CA |
- For use to connect threaded metal conduit to a threadless opening in a box or enclosure
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 1-31/32 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
- Class I, Division 2|Class II, Group E, G|Class III, Division 1, 2 and Type 4|CSA Certified|UL File No. E23018
