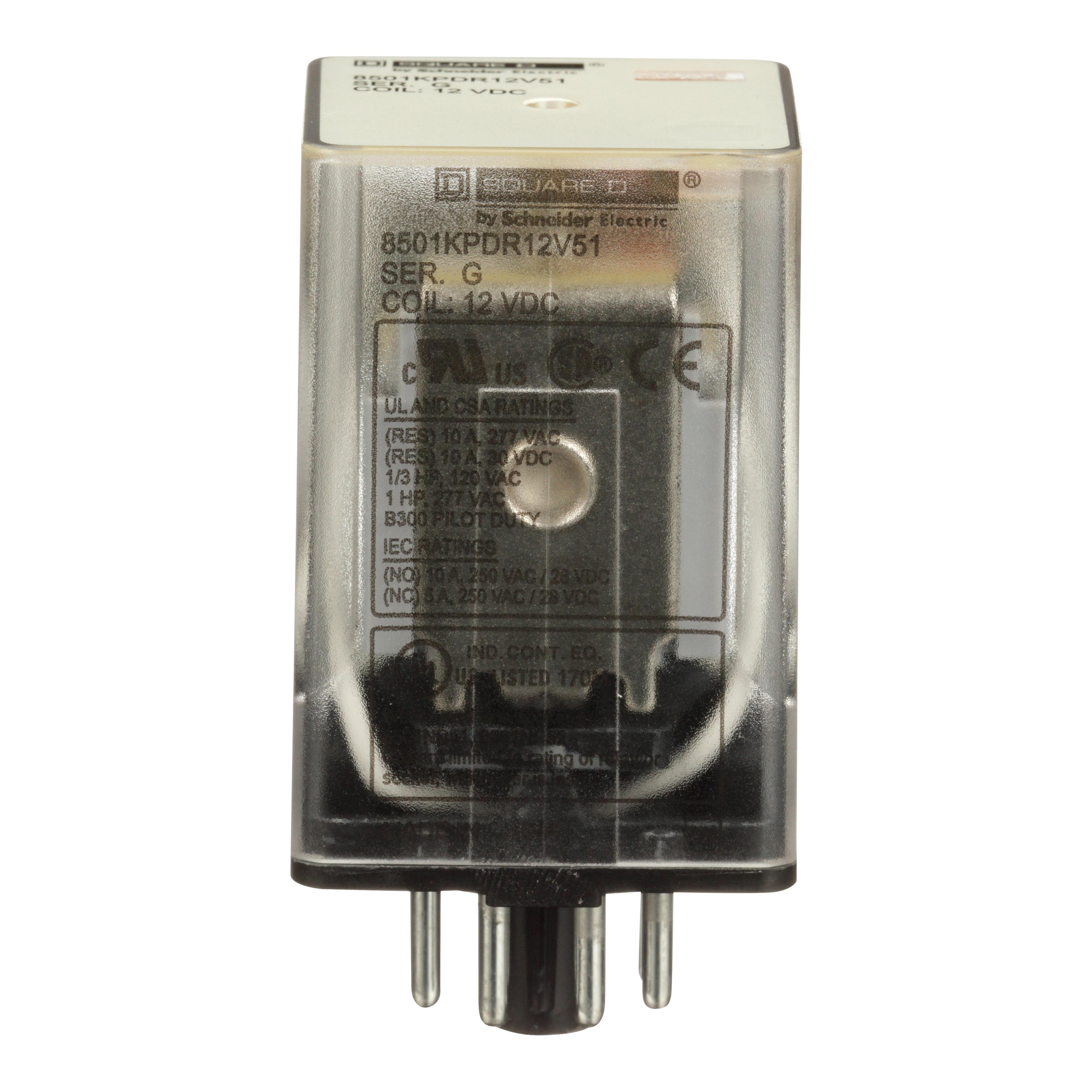

Square D™ 8501KPDR12V51 8501K Series General Purpose Relay, 10 A, 8 pin, 2 Form C DPDT-NO,NC contact, 12 V DC v coil
Sku #78590198104
MFG #8501KPDR12V51
Attributes
| Type: | General Purpose Relay |
| Amperage Rating: | 10 A |
| Coil Voltage: | 12 V DC |
| Series: | 8501K Series |
| Power Rating: | 1 hp at 277 VAC,0.33 hp at 120 VAC |
| Contact Form: | 2 Form C DPDT |
- Horsepower Rated
- DPDT Latching Relay
- AC or DC Operation
- General purpose relay type
- Without test button manual operator
- Silver alloy (AgNi) contact material
- 20 ms - pick-up20 ms - drop-out operating time
- With toxic heavy metal free
- For multipole switching applications at 300 VAC or lower
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|UL Listed|UL Recognized|CSA|CE
