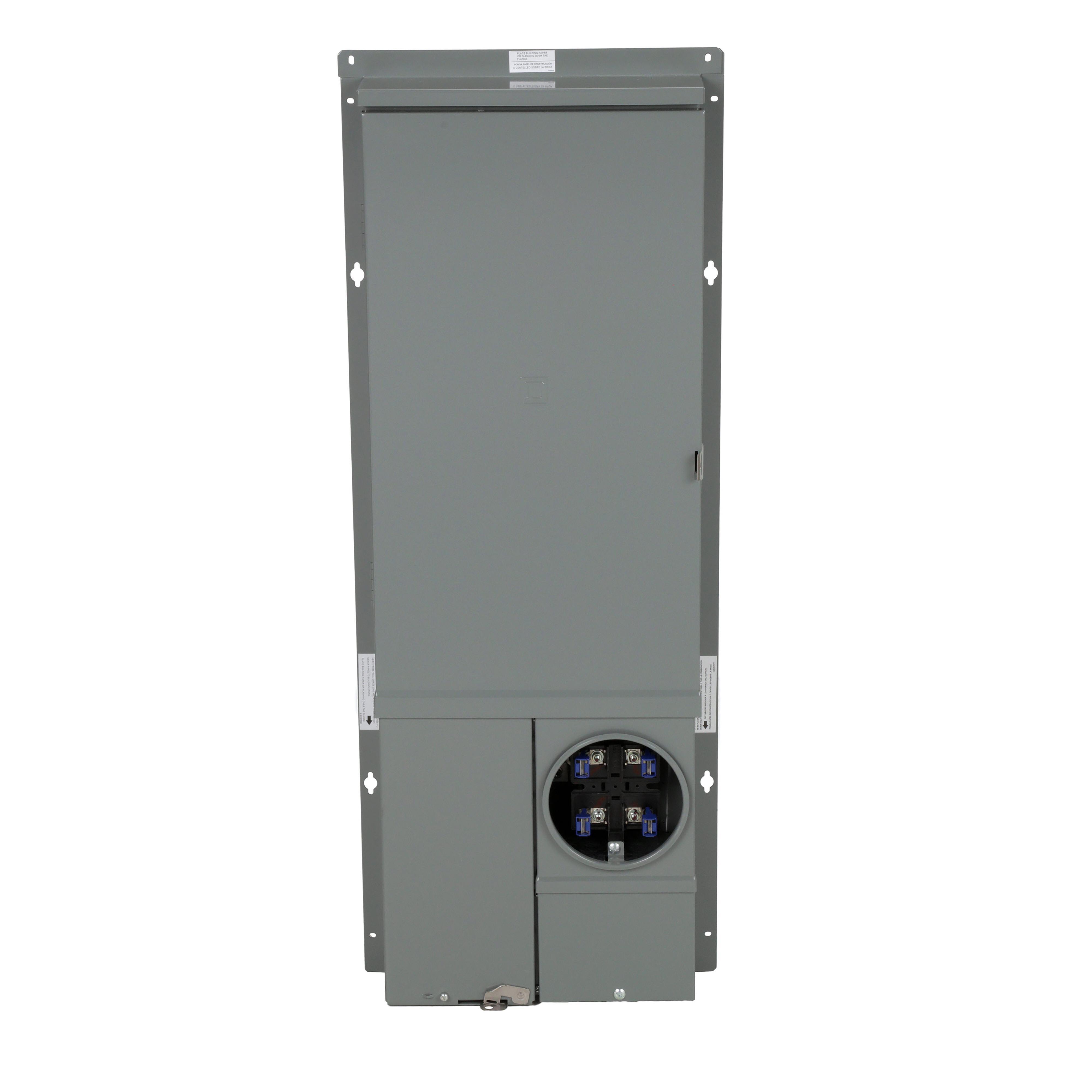

Square D™ HomeLine™ SC3042M200PF 30-Space 42-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure
Sku #78590195684
MFG #SC3042M200PF
Attributes
| Type: | 30-Space 42-Circuit All-In-One Field Installed Rainproof |
| Amperage Rating: | 200 A |
| Feed Type: | Overhead/Underground |
| Voltage Rating: | 120/240 V AC |
| Phase: | 1 |
| Number of Jaws: | 4 |
- Compatible with Homeline plug-in mount breakers
- This single compact solution provides a time and space saving solution for contractors and installers
- Suitable for use as service entrance equipment
- CSED allows for the meter socket to integrate with the load center into one compact design
- Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
- Residential Applications
- BAA Compliant|UL 50/67/414 File #E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA Approved
