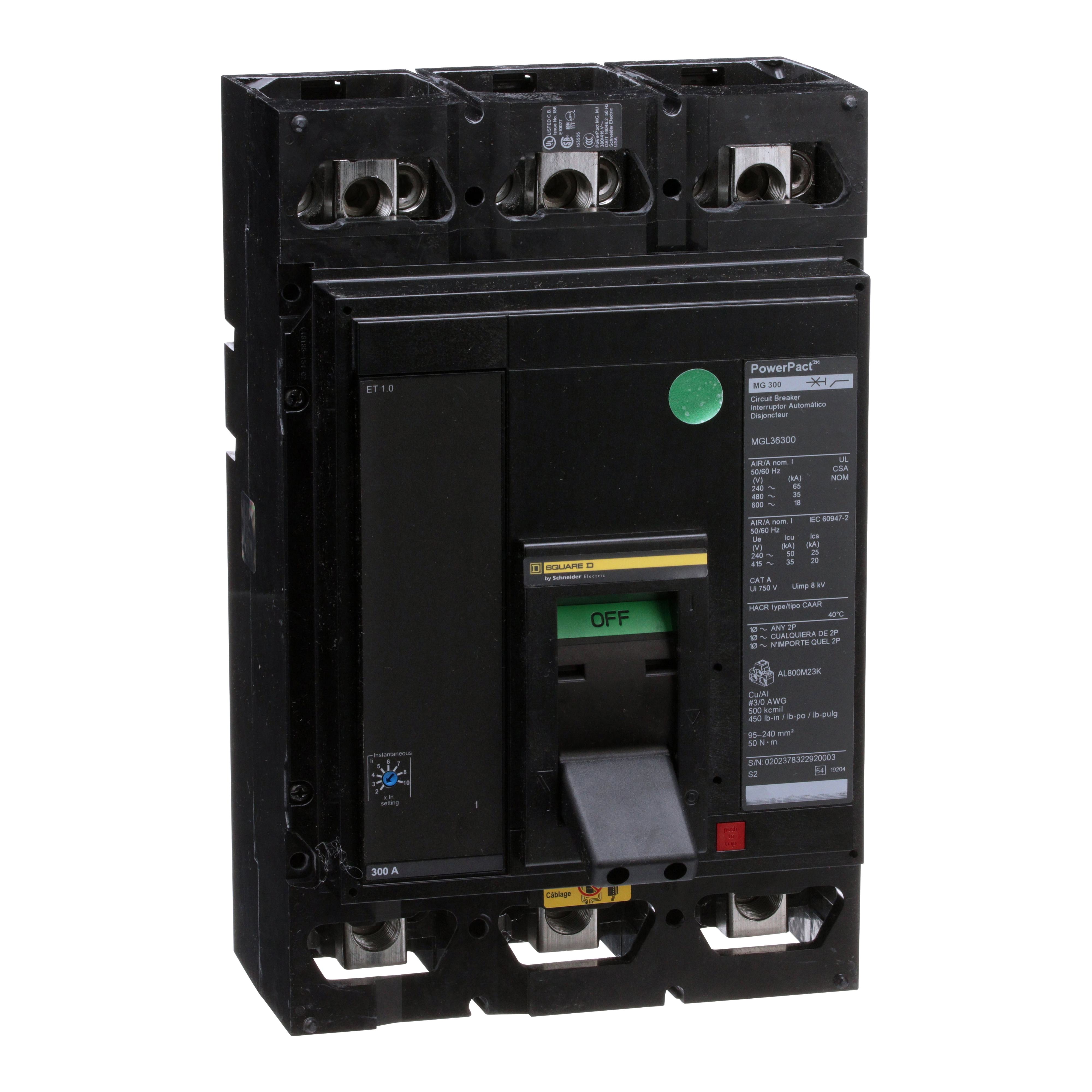

Schneider Electric PowerPact™ MGL36350LW 80% Rated Molded Case Circuit Breaker With Control Cable ON and OFF End, 600 VAC, 350 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Trip
Sku #78590195549
MFG #MGL36350LW
Attributes
| Type: | 80% Rated |
| Amperage Rating: | 350 A |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | M Frame |
- Available in 2 or 3 pole design
- Standard 80% rating only
- Common mounting holes, handle locations, and trim dimensions
- Wide range of field installable accessories
- For providing overload and short circuit protection
- UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|RoHS Compliant|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Schneider ElectricSchneider Electric PowerPact™ MGL36350LW 80% Rated Molded Case Circuit Breaker With Control Cable ON and OFF End, 600 VAC, 350 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Trip
SKU #78590195549
MFG #MGL36350LW
