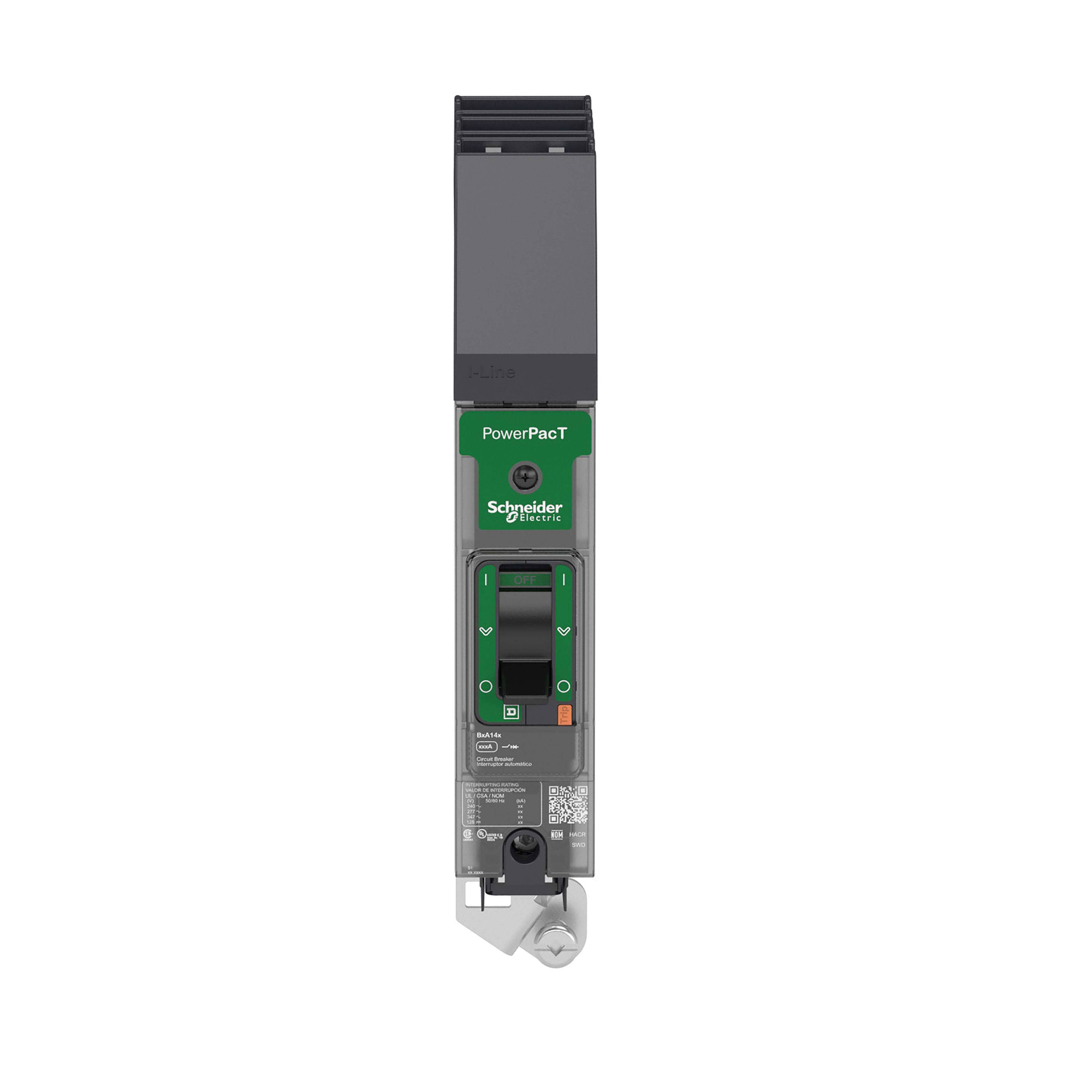

Square D™ PowerPact™ BGA140205 BG 020 Molded Case Circuit Breaker, 480Y/277 VAC, 250 VDC, 20 A, 35/20 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Sku #78590194207
MFG #BGA140205
Attributes
| Series: | BG 020 |
| Amperage Rating: | 20 A |
| Interrupt Rating: | 35/20 kA |
| Voltage Rating: | 480Y to 277 V AC/250 V DC |
| Frequency Rating: | 50/60 Hz |
| Frame: | B |
- CE Certified|CSA C22.2 File No. 5|CCC Certified|EAC|EN/IEC 60947-2|EN/IEC 60947-5-1|Green Premium™ Listed|GB 14048.2|IEC 60529|NMX J-266|NOM Certified|REACH Compliant|RoHS Compliant|WEEE Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/watch?v=xNQHMcmA6OE
- Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings Applications
