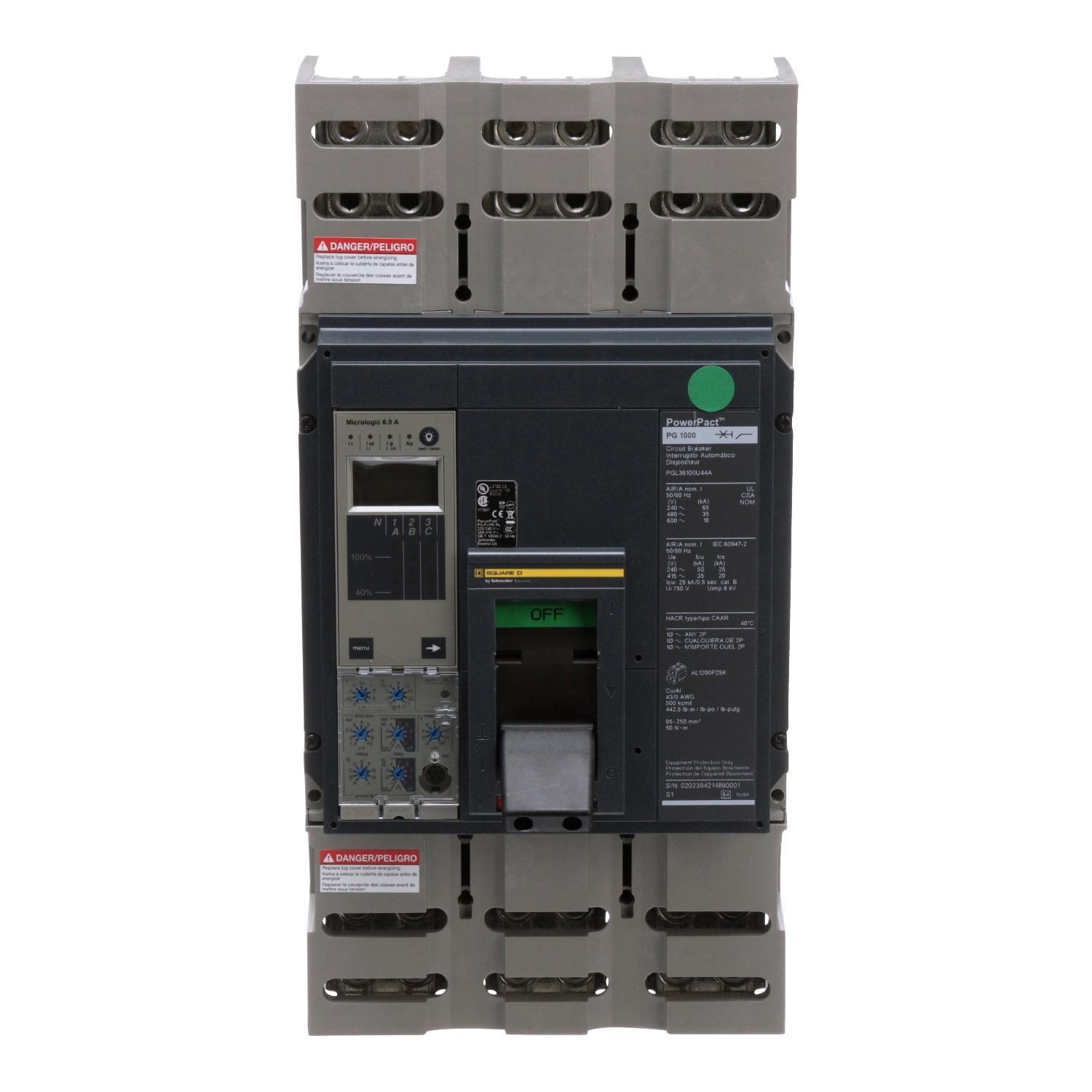

Square D™ PowerPact™ PGL36100U44A Type PGL Molded Case Circuit Breaker, 600 V AC, 1000 A, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

Sku #78590191259

MFG #PGL36100U44A

Attributes

Type:	Type PGL
Amperage Rating:	1000 A
Interrupt Rating:	65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC

Voltage Rating:	600 V AC
Frequency Rating:	50/60 Hz
Frame:	P

Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
Used as main panel disconnect for control panel
https://www.youtube.com/watch?v=7QHCUy5_CuE

Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Control and Monitoring, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses Applications

Documents

Full Engineering Drawing

Square D™Square D™ PowerPact™ PGL36100U44A Type PGL Molded Case Circuit Breaker, 600 V AC, 1000 A, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

SKU #78590191259

MFG #PGL36100U44A
