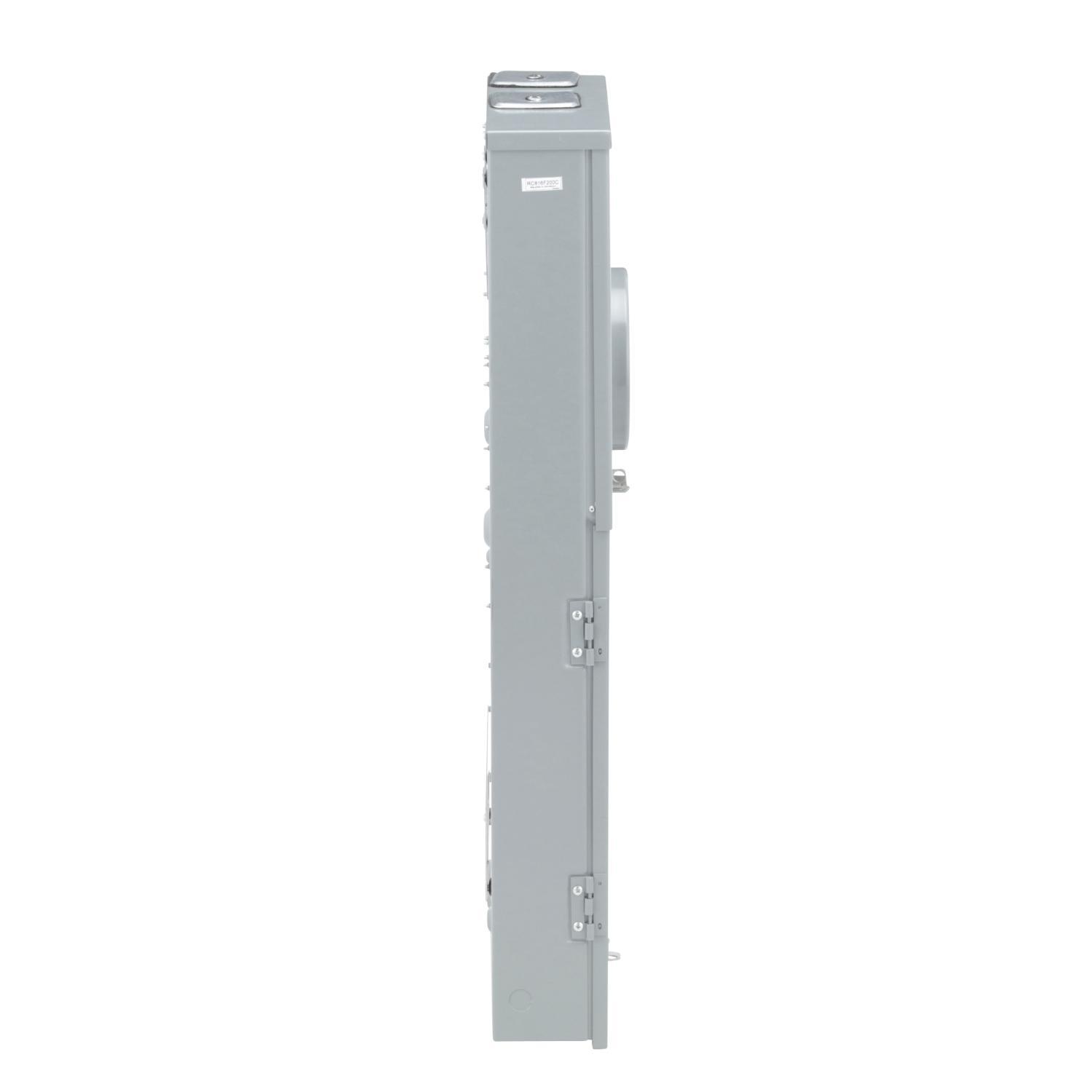

Square D™ Homeline™ RC816F200C 8-Space 16-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240, 208Y/120 V AC, 200 A, 1 Phase, NEMA 3R Enclosure
Sku #78590186392
MFG #RC816F200C
Attributes
| Type: | 8-Space 16-Circuit All-in-One Field Installed Rainproof |
| Amperage Rating: | 200 A |
| Frequency Rating: | 50/60 Hz |
| Voltage Rating: | 120/240, 208Y/120 V AC |
| Phase: | 1 |
| Feed Type: | Overhead/Underground |
- Buy American Act Compliant|RoHS Compliant|UL 50/67/414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA Approved
- Residential Applications
- 18 months
- Homeline ringless meter mains support standard utility meters and a main disconnect breakers
- This single compact solution provides a time and space saving solution for contractors and installers
- Suitable for use as service entrance equipment
- CSED allows for the meter socket to integrate with the load center into one compact design
- https://www.youtube.com/watch?v=04tMRDnt-No
- Closing Plate Hub, Factory Installed Barrel Lock and Load Side Feed Through Lugs
