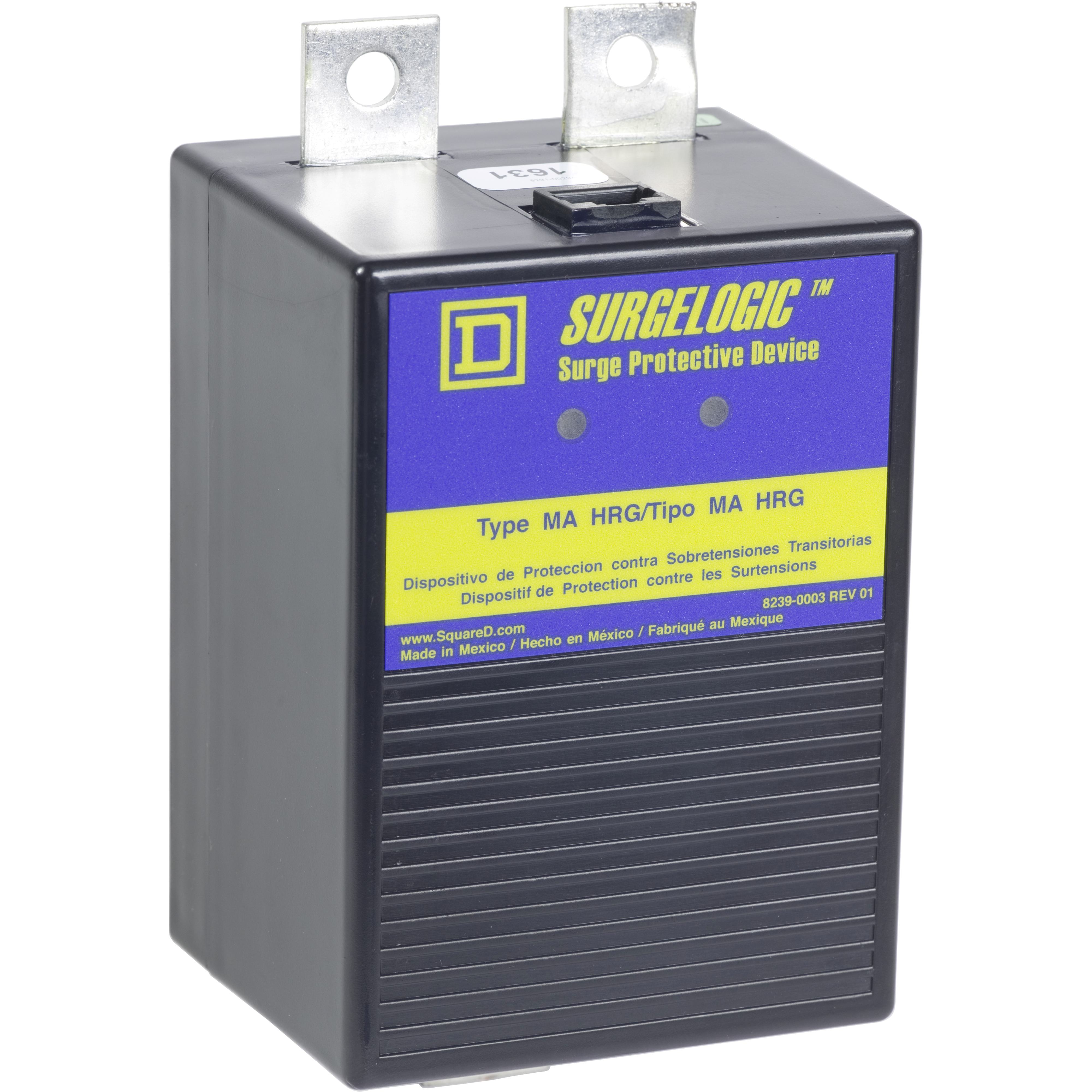

Square D™ Surgelogic™ MA8IMA16H IMA Series High Resistance Ground Surge Protection Module, 600Y/347 V AC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
Sku #78590183177
MFG #MA8IMA16H
Attributes
| Type: | High Resistance Ground |
| Electrical Ratings: | 600Y/347 V AC |
| Number of Poles: | 3 |
| Series: | IMA Series |
| Frequency Rating: | 50/60 Hz |
| Number of Wires: | 3 |
- ANSI/IEEE C62.41/C62.45|CSA C22.2 File No. 8:1986|UL 1449
- For low voltage products and systems, building automation and control, industrial automation and control, critical power, cooling and racks
- Alarm Enable/Disable Switch
- High energy suppression circuit that provides 10 modes of suppression from 100000 to 480000 peak A of surge current rating per phase
- Advanced diagnostics allow for visual indication/testing of the suppressor's functionality
- Suppression status alarms provide multiple methods of alarm notification
- Coordinated fuse technology allows disconnection methods for thermal and high current events
- External panel SPDs mount adjacent to the equipment through a conduit connection and as close to the circuit breaker as possible in order to reduce lead lengths and improve surge suppression
- Flexibility to install on line side of service entrance applications
- Provides suppression to vulnerable equipment powered from weather exposed panels
- High performance surge suppression even in severe electrical conditions
- Improves surge suppression and reduces high frequency noise
- Provides immediate response if suppressor is damaged
- Immediate notification through audible, visual and remote signaling if reduced suppression occurs
- Provides premium surge suppression while managing both thermal and high current end of life events
- 18 months
