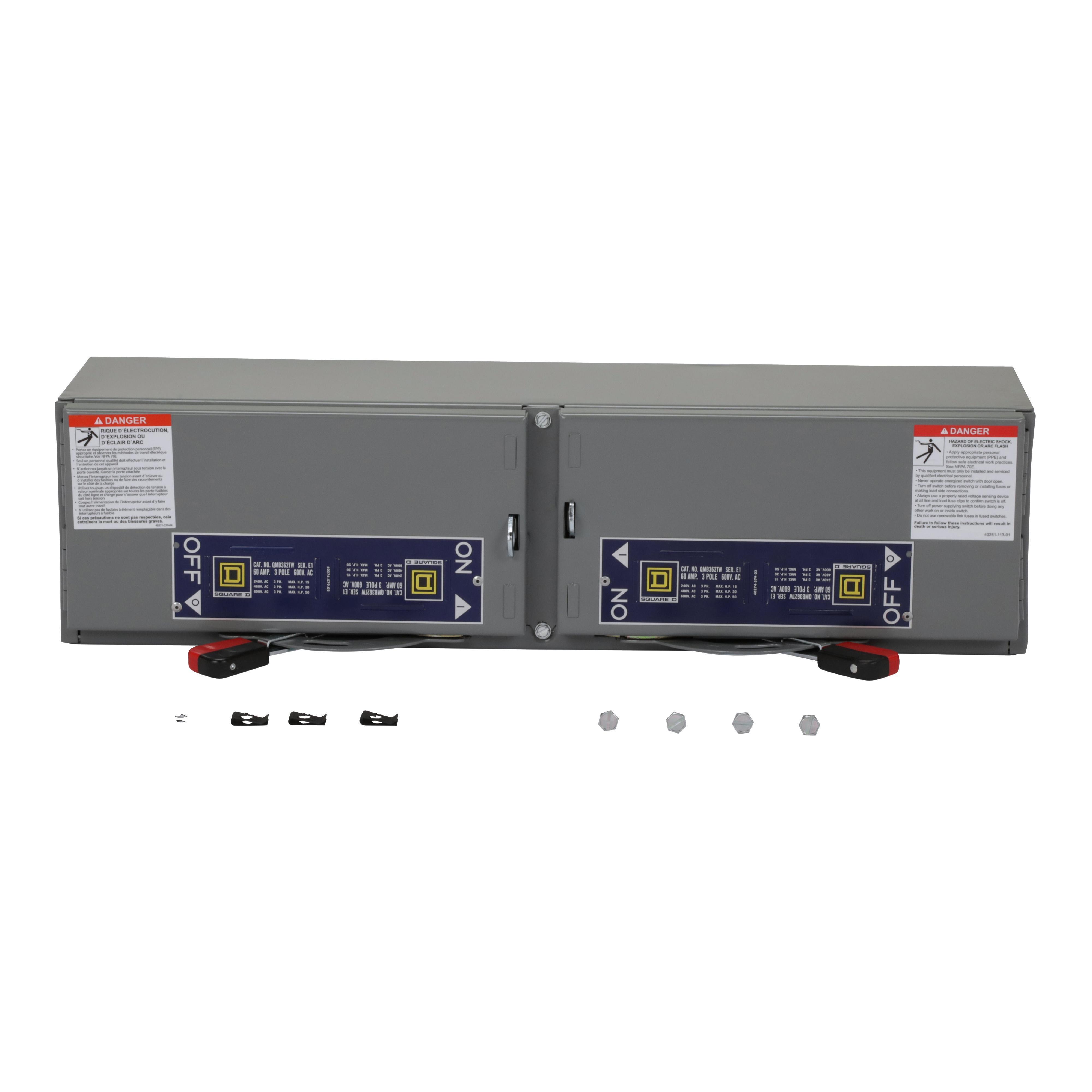

Square D™ QMB362TW Fusible Twin Branch Switch Unit, 600 VAC, 60 A, 50 hp Power Rating, 3 Poles, 200 kA Interrupt
Sku #78590176576
MFG #QMB362TW
Attributes
| Type: | Fusible Twin |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Series: | QMB |
| Amperage Rating: | 60 A |
| Power Rating: | 50 hp |
- Positive lock-off means with provisions for three 3/8 in shackle padlocks
- Dual cover interlock
- Red and black operating handle and large ON/OFF nameplate clearly identifies the position of the switch blades
- Hasp on the switch door latch mechanism to lock the switch door
- Mounting brackets are permanently attached to the switch enclosure
- Provides positive identification of the position of the switch blades
- Convenient aid for removing fuses
- Accepts either copper or aluminum wire
- For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection applications
- RoHS Compliant|CSA File No. LL48755|Federal Specification W-C-865C|UL 98|UL File No. E34358|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
