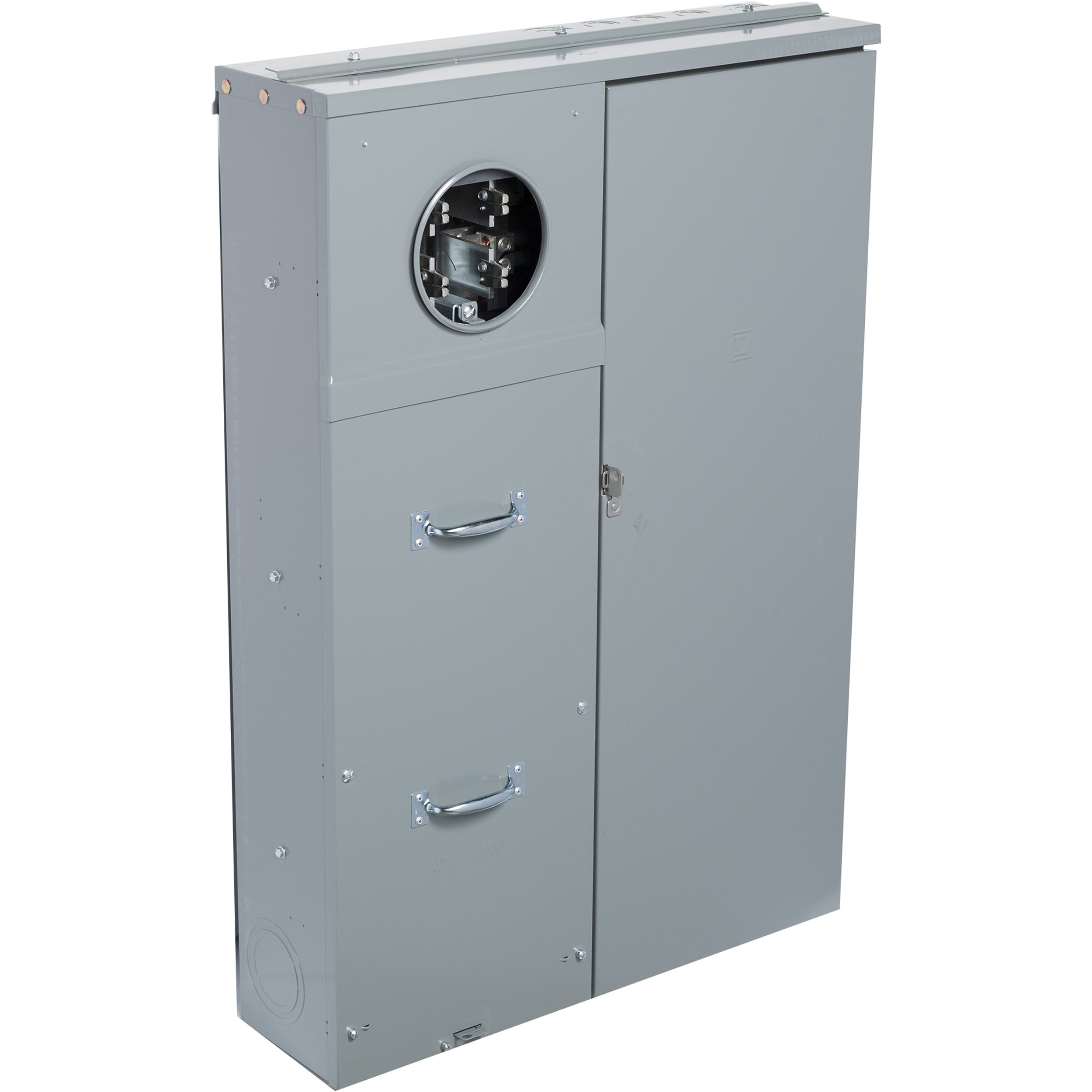

Square D™ HomeLine™ SU3040D300CB 30-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Test Block Bypass, 120/240 VAC, 300 A
Sku #78590175493
MFG #SU3040D300CB
Attributes
| Type: | 30-Circuit 40-Space All-In-One Field Installed Rainproof |
| Amperage Rating: | 300 A |
| Wire Size: | 4 AWG to 250 kcmil Aluminum/Copper |
| Voltage Rating: | 120/240 V AC |
| Feed Type: | Underground |
| Hub Type: | A-L |
- Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
- Multiple disconnect units can be converted to semi-flush with addition of flange kit
- For use only on 120/240 VAC 1-phase, 3-wire system (4-jaw meter socket)
- Knockout provided in cover for use with barrel lock kit SCBRLLOCK
- Device configuration is not included in EUSERC standards
- Residential Applications
- UL 50|UL 67|UL 414|UL File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
