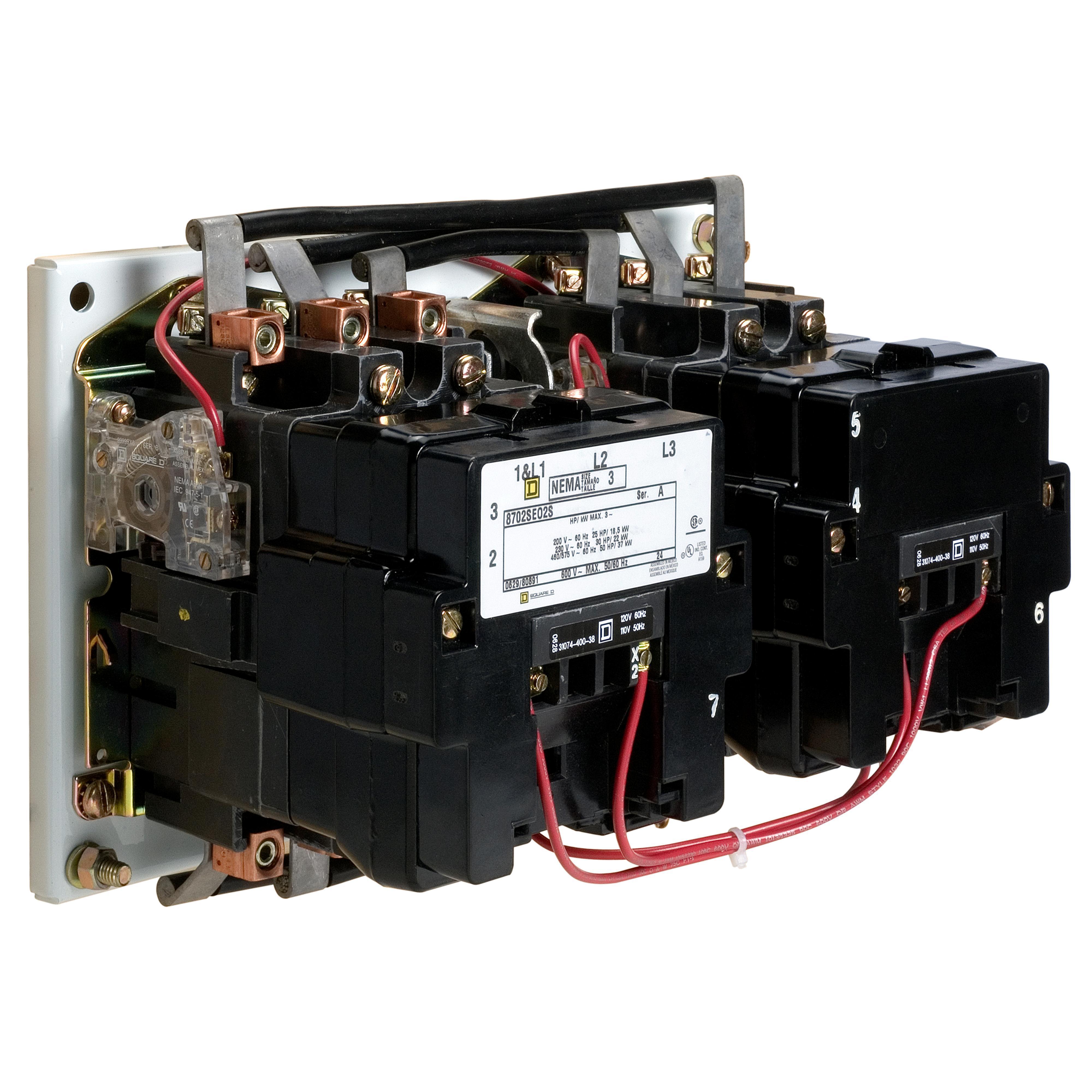

Square D™ 8702SHO1V02S Reversing Type S Contactor, 110 V AC at 50 Hz to 120 V AC at 60 Hz V Coil, 3 Poles
Sku #78590170811
MFG #8702SHO1V02S
Attributes
| Type: | Reversing Type S |
| Coil Voltage: | 110 V AC at 50 Hz to 120 V AC at 60 Hz |
| Number of Poles: | 3 |
| Series: | 8702 |
| Coil Power Rating: | 150 hp at 200 VAC/200 hp at 230 VAC/400 hp at 460/575 VAC |
| Frequency Rating: | 50/60 Hz |
- A normally open holding circuit contact for three wire control is provided as standard
- For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations
- Bell crank design promotes superior electrical and mechanical life
- NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage
- NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source
- Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact
- Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact
- 600 VAC system voltage
- Screw clamp terminal
- Without indicator
- Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation
- CSA File LR60905 Class 3211-04|ECCN: EAR99|UL E78351 CCN NLDX|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.gov
