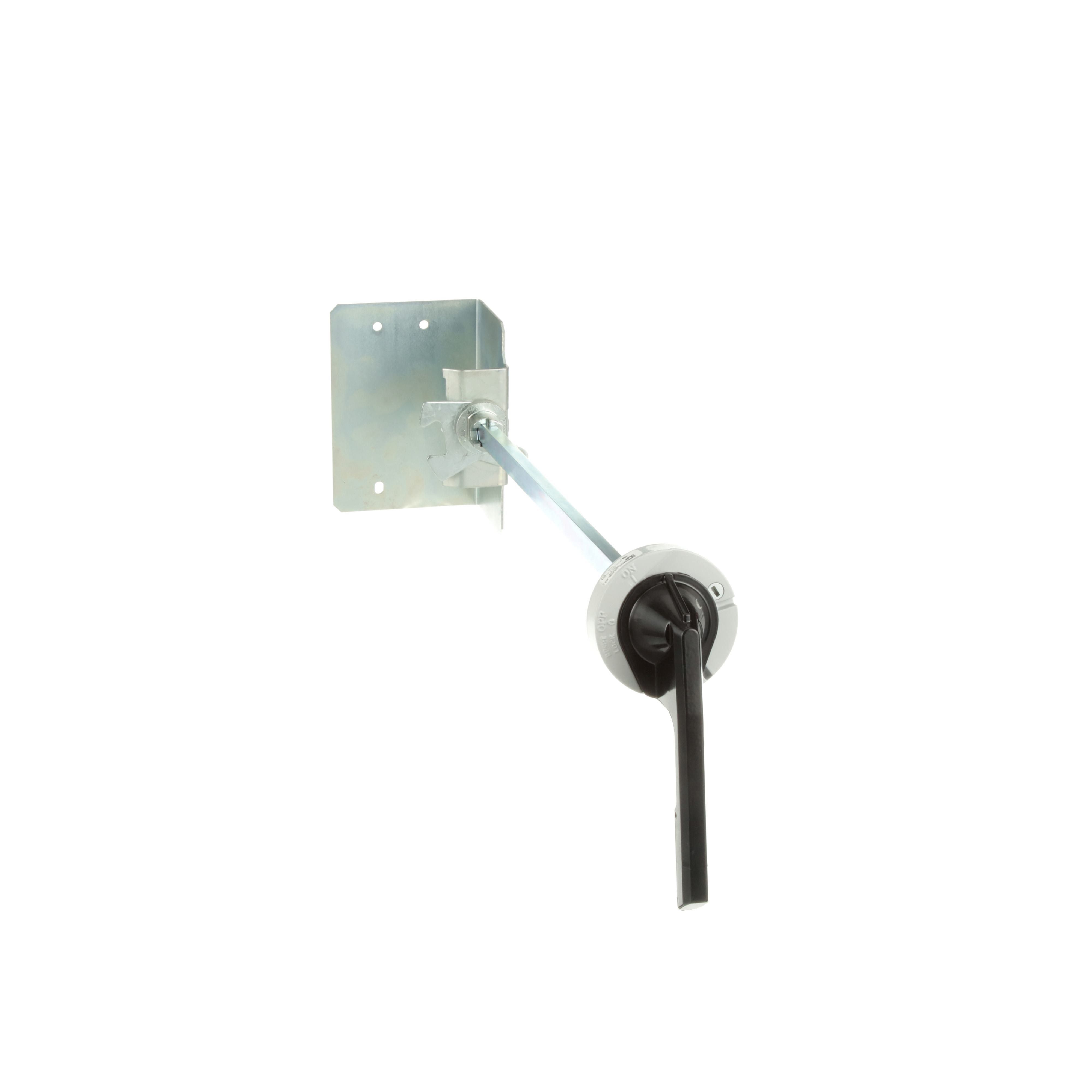

Square D™ 9421LJ4 Long Shaft Variable Depth Circuit Breaker Operating Mechanism, NEMA 1/3R/12/250 NEMA Rating, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With PowerPact® H or J Frame and MG-NSF 250 A Circuit Breaker
Sku #78590170046
MFG #9421LJ4
Attributes
| Type: | Long Shaft Variable Depth |
| NEMA Rating: | NEMA 1/3R/12/250 |
| Handle Mounting Position: | Direct Mount |
| Series: | 9421L |
| Handle/Operation: | Rotary Handle |
| Suitable For Use With: | PowerPact® H or J Frame and MG-NSF 250 A Circuit Breaker |
- Handle, Shaft and Operating Mechanism
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
- NEMA 1/3R/12 enclosure
- RoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- 18 months
