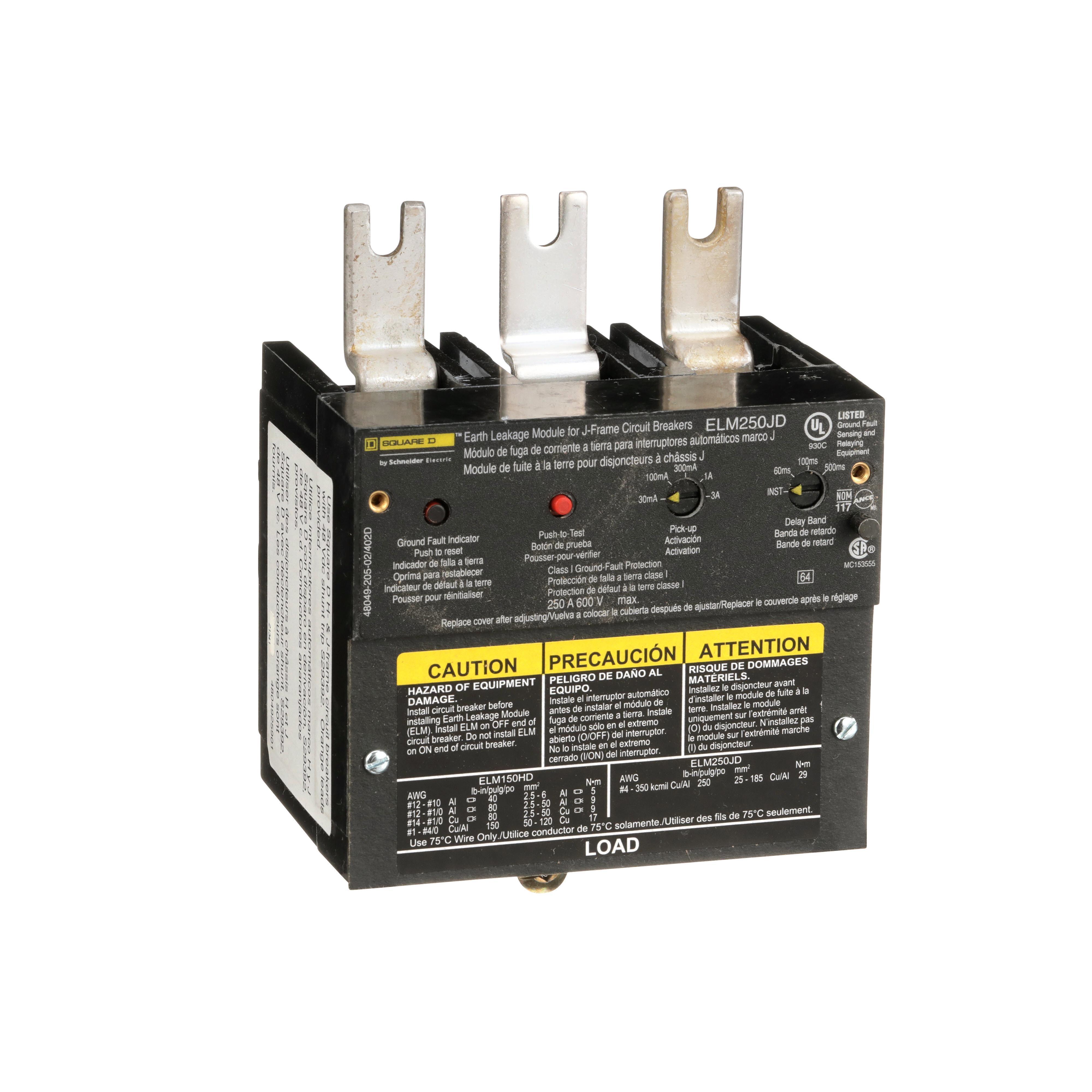

Square D™ PowerPact™ ELM250JD Add-On Earth Leakage Block, 240 to 600 V AC, 15 to 250 A, For Use With PowerPact™ JG/JD/JL/JJ Frame Molded Case Circuit Breaker
Sku #78590168474
MFG #ELM250JD
Attributes
| Type: | Add-On |
| Voltage Rating: | 240 to 600 V AC |
| Suitable For Use With: | PowerPact™ JG/JD/JL/JJ Frame Molded Case Circuit Breaker |
| Series: | PowerPact |
| Amperage Rating: | 15 to 250 A |
| Country of Origin: | US |
- ELMs are highly sensitive (30 mA to 3 A) and they provide much greater protection than GFMs (20 to 200 A sensitivity)
- ELM fits in LA enclosure, I-line switch board and used with JD, JG, JJ, JL
- At 250 A the ELM250JD can be used with 80% rated circuit breakers only
- Dual interlock prevents cover from being opened (switch is ON)/prevents the switch from being turned ON (cover is open)
- Horsepower rated for motor applications as 60 hp
- For used to provide low level ground fault sensing and relaying functions
- UL 1053|CSA Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
