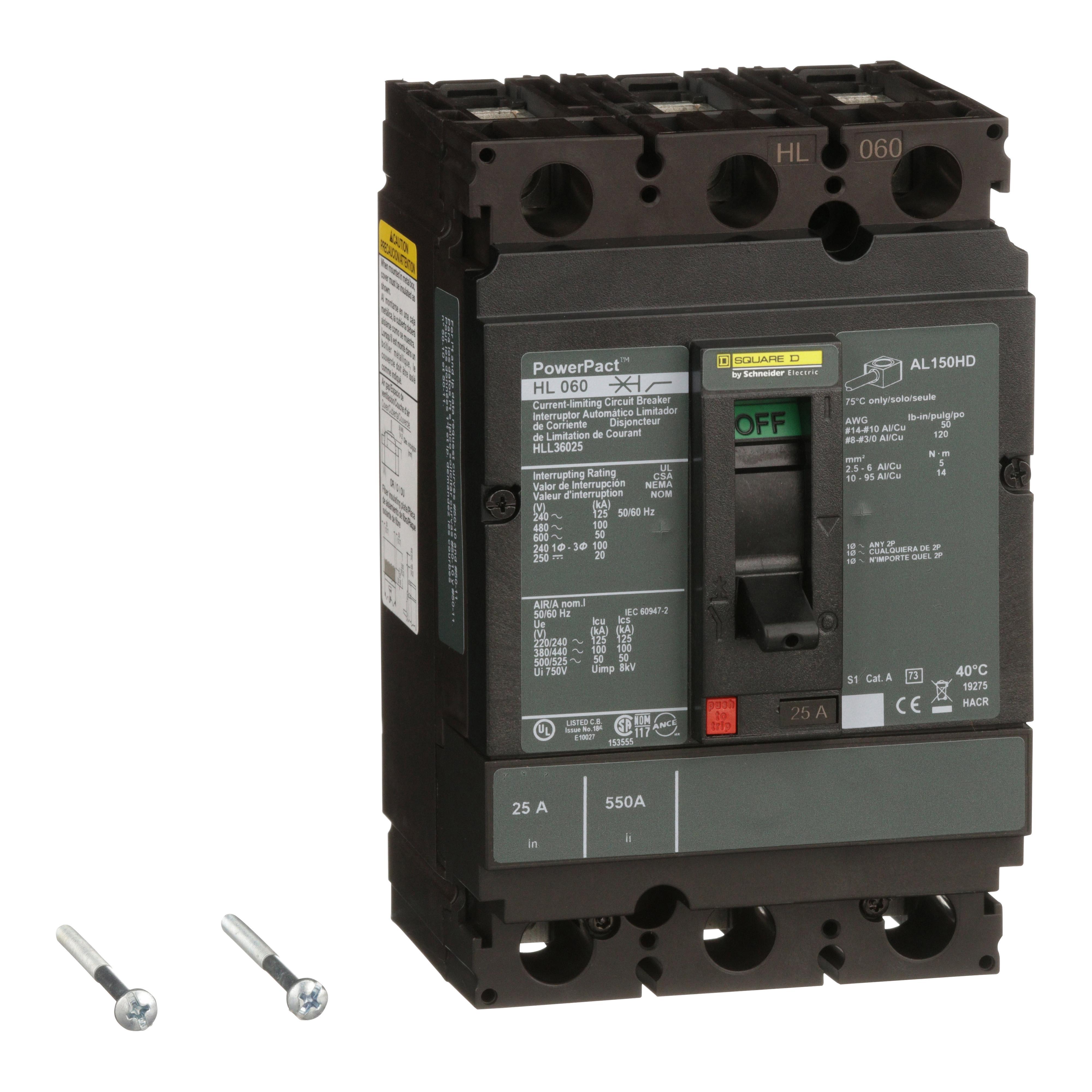

Square D™ I-Line™ PowerPact™ HLL36025 Type HLL Molded Case Circuit Breaker, 600 V AC/250 to 500 V DC, 25 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #78590168310
MFG #HLL36025
Attributes
| Type: | Type HLL |
| Amperage Rating: | 25 A |
| Interrupt Rating: | 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC |
| Voltage Rating: | 600 V AC/250 to 500 V DC |
| Frequency Rating: | 50/60 Hz |
| Frame: | L |
- Standard 80% or 100% rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- QR codes for easy access to device documentation
- https://www.youtube.com/embed/08co8m1vWjY
- BAA Compliant|RoHS Compliant|UL 498 File #E10027|CSA C22.2 #5 File #LR40970|CCC/CE Certified|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NOM Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
- Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses, Industrial Markets, Power Meters, Operating Assistance, Front Display Modules, Communication Networks, Overload and Short Circuit Protection
