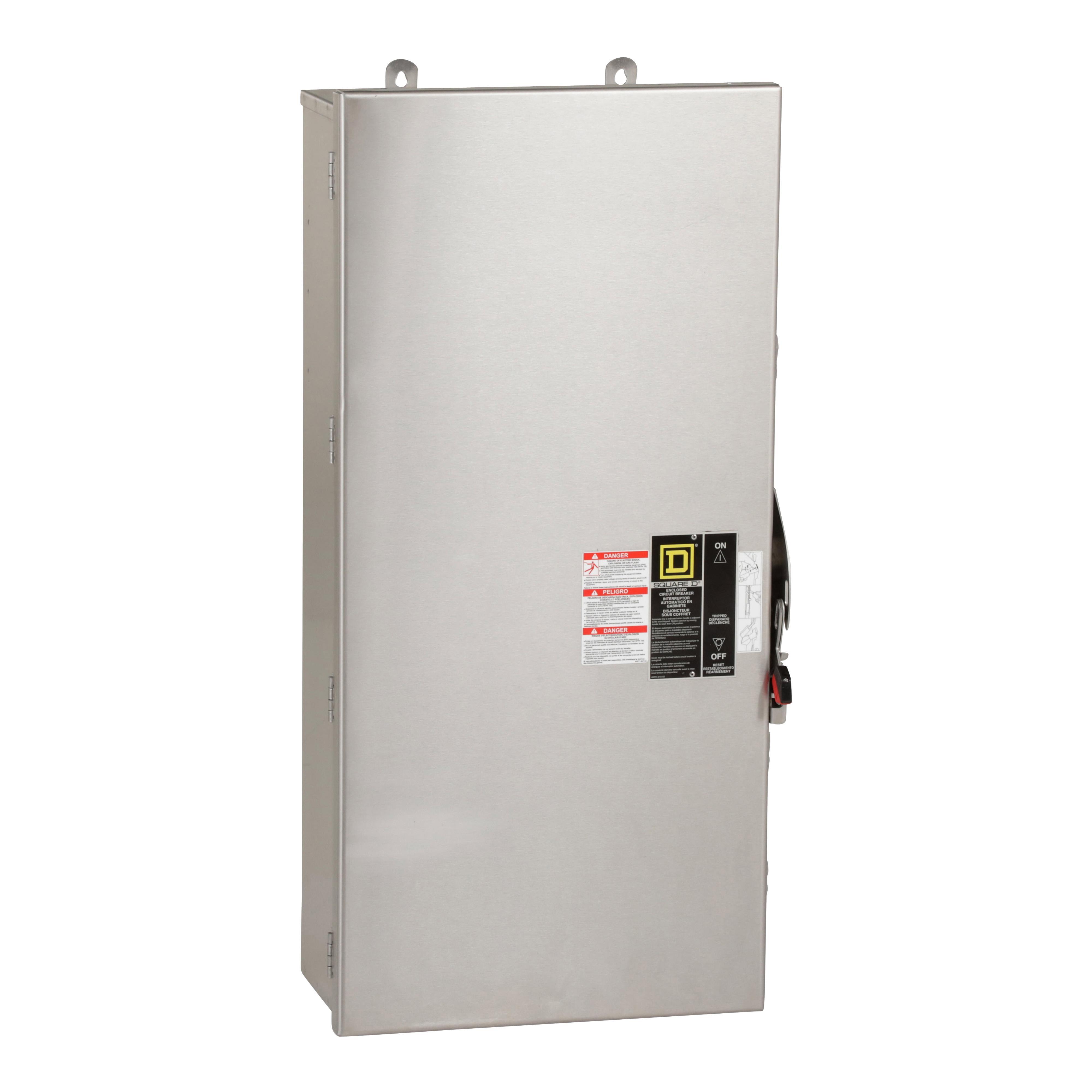

Square D™ M800DS A01 Enclosure, 527.05 mm W x 241.3 mm D x 1036.96 mm H, NEMA 3/3R/4/4X/5 NEMA Rating, Stainless Steel
Sku #78590166989
MFG #M800DS
Attributes
| Series: | A01 |
| Depth: | 241.3 mm |
| NEMA Rating: | NEMA 3/3R/4/4X/5 |
| Width: | 527.05 mm |
| Height: | 1036.96 mm |
| Frame: | M |
- ECCN: EAR99|CSA Certified|REACH Compliant|RoHS Compliant|UL Listed|PROP65:This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- PowerPacT M circuit breaker enclosure 300 to 800A rated
- NEMA 4, 4X, and 5 (NEMA Type 304 stainless steel) indoor/outdoor, watertight, dust-tight, corrosionresistant enclosure
- Enclosure assepts MGL, MJL
- The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
- Circuit breakers are ordered and shipped separately for field installation
- The enclosures are not compatible with earth-leakage or ground-fault modules
