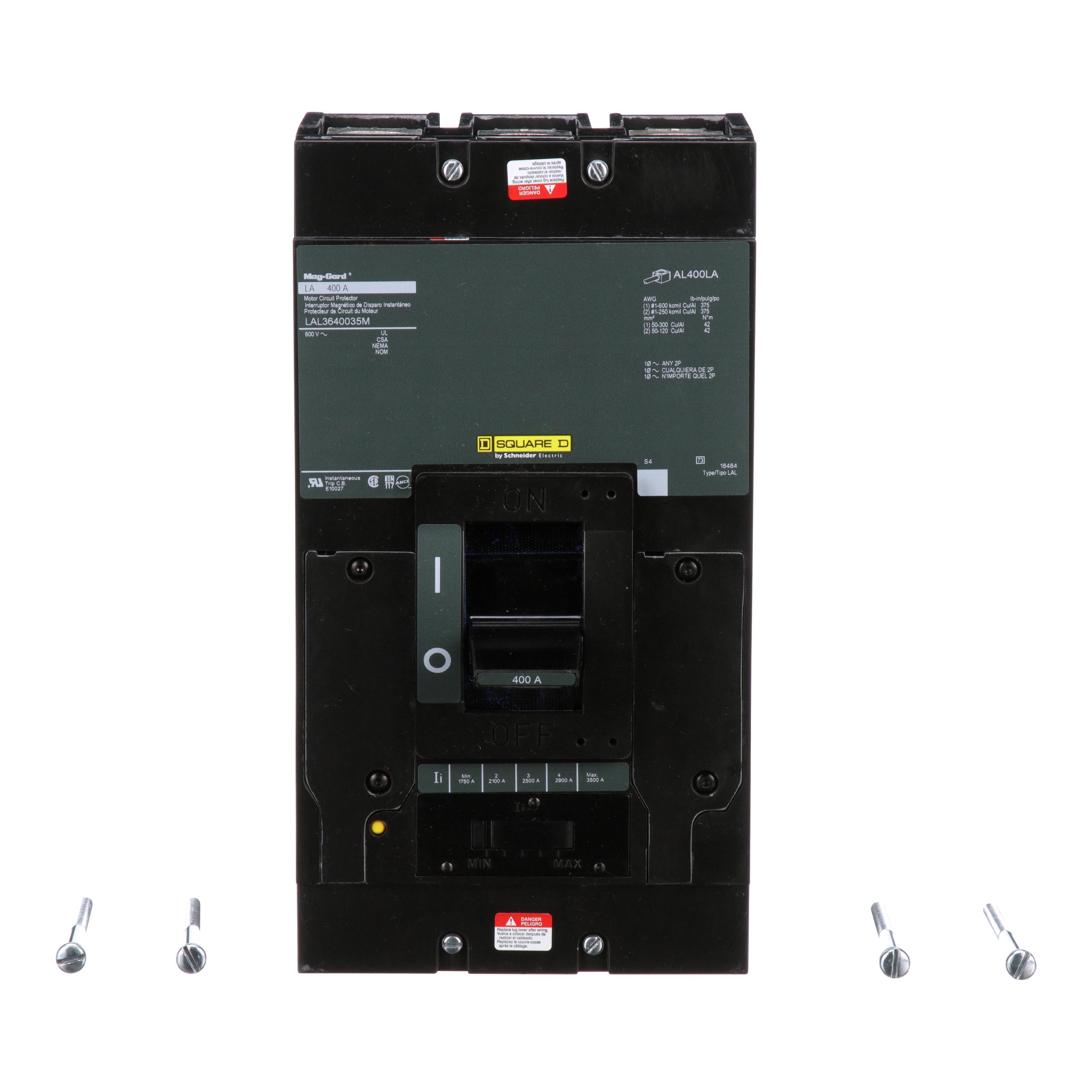

Square D™ PowerPact™ Mag-Gard™ LAL3640035M Type LAL Motor Circuit Protector, 600 V AC/250 V DC, 400 A, 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #78590165049
MFG #LAL3640035M
Attributes
| Type: | Type LAL |
| Amperage Rating: | 400 A |
| Frame: | L |
| Voltage Rating: | 600 V AC/250 V DC |
| Interrupt Rating: | 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC |
| Trip Type: | Thermal Magnetic |
- Adjustable amperage pick up setting
- Allows coordinating pick up to motor starter
- Accepts the same lugs and accessories as equivalent LA circuit breakers
- Shunt trip is used to trip the circuit breaker from a remote location with a trip coil energized from a separate circuit
- RoHS Compliant|UL 508|CSA C22.2 No. 14|CCC Certified|CE Certified|IEC 60947-2|NEMA AB1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
