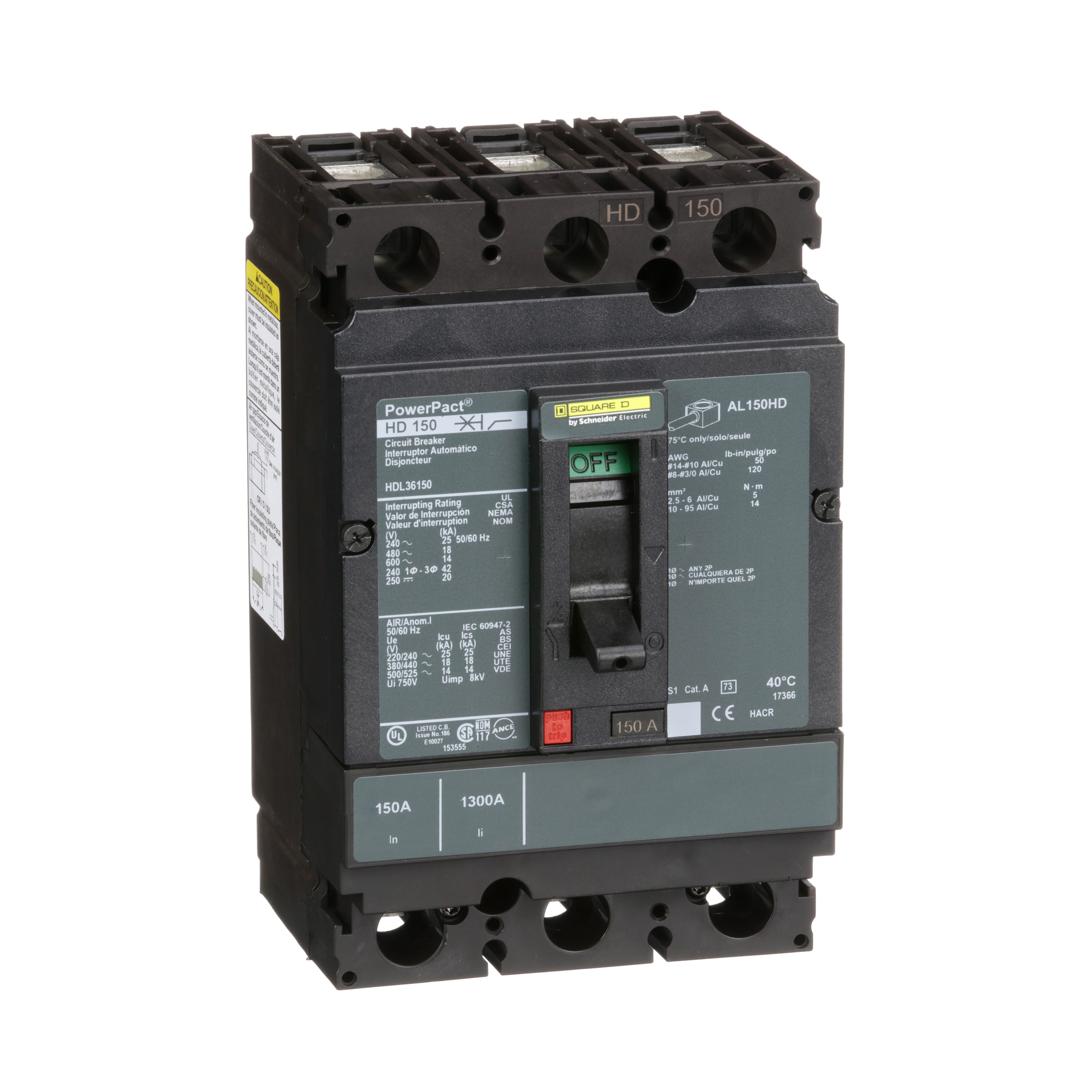

Square D™ PowerPact™ HDL36150 80% Rated Type HDA Molded Case Circuit Breaker, 600 V AC/250 V DC, 150 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip

Sku #78590162321

MFG #HDL36150

Attributes

Type:	80% Rated Type HDA
Amperage Rating:	150 A
Interrupt Rating:	25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC

Voltage Rating:	600 V AC/250 V DC
Frequency Rating:	50/60 Hz
Frame:	H

Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
A wide range of accessories, auxiliaries, and lug connections available
QR codes for easy access to device documentation
https://www.youtube.com/embed/4wUOBk4oUmk

For providing overload and short circuit protection
