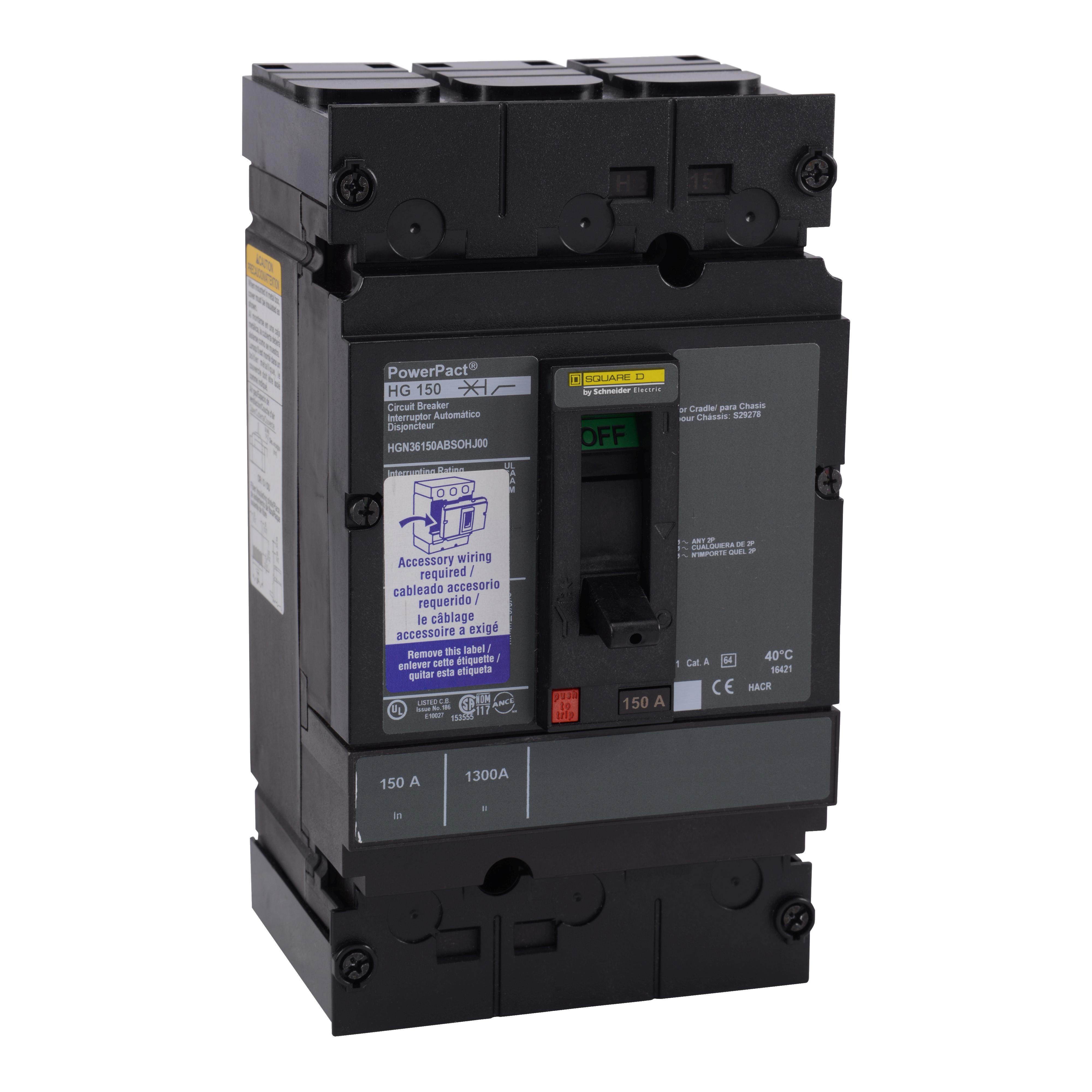

Square D™ HGN36150ABSOHJ00 PowerPact H Circuit Breaker, 3 Poles
Sku #78590161027
MFG #HGN36150ABSOHJ00
Attributes
| Type: | PowerPact H |
| Enclosure Type: | NEMA A |
| Temperature Rating: | -2 to 70 deg C |
| Number of Poles: | 3 |
| Mounting Type: | Base |
| Color: | Black |
- Thermal-magnetic and electronic protection available
- Common accessories and auxiliaries with other PowerPacT frames
- Switch-disconnector versions also available
- Available in 2-3 pole design
- Available from 15-150A at up to 600 Vac and 250 Vdc
- Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc
- Available in standard (80%) or 100% rating
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPacT H- and J-frame circuit breakers
- Available with field-interchangeable trip units
- Common accessories across the range of PowerPacT Molded Case Circuit Breakers allow users to make late specification changes
- A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC Style Rotary Operating Handles
- NEMA 9421 Door Mounted Rotary Operating Mechanism
- NEMA 9422 Flange Mounted Operating Mechanism in two styles - bracket mounted or cable operated
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields
- Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions
- 2-3 pole automatic molded case switches available at 150A
- 18 Months
- Designed to protect electrical systems from damage caused by overloads and short circuits
- Factory installed 2A/2B auxiliary switch and 24VDC shunt trip
- PROP65|NOM|CE Marked|NOM-003-SCFI-2000|IEC 60947-2|CSA|NEMA|UL|IEC Standards
