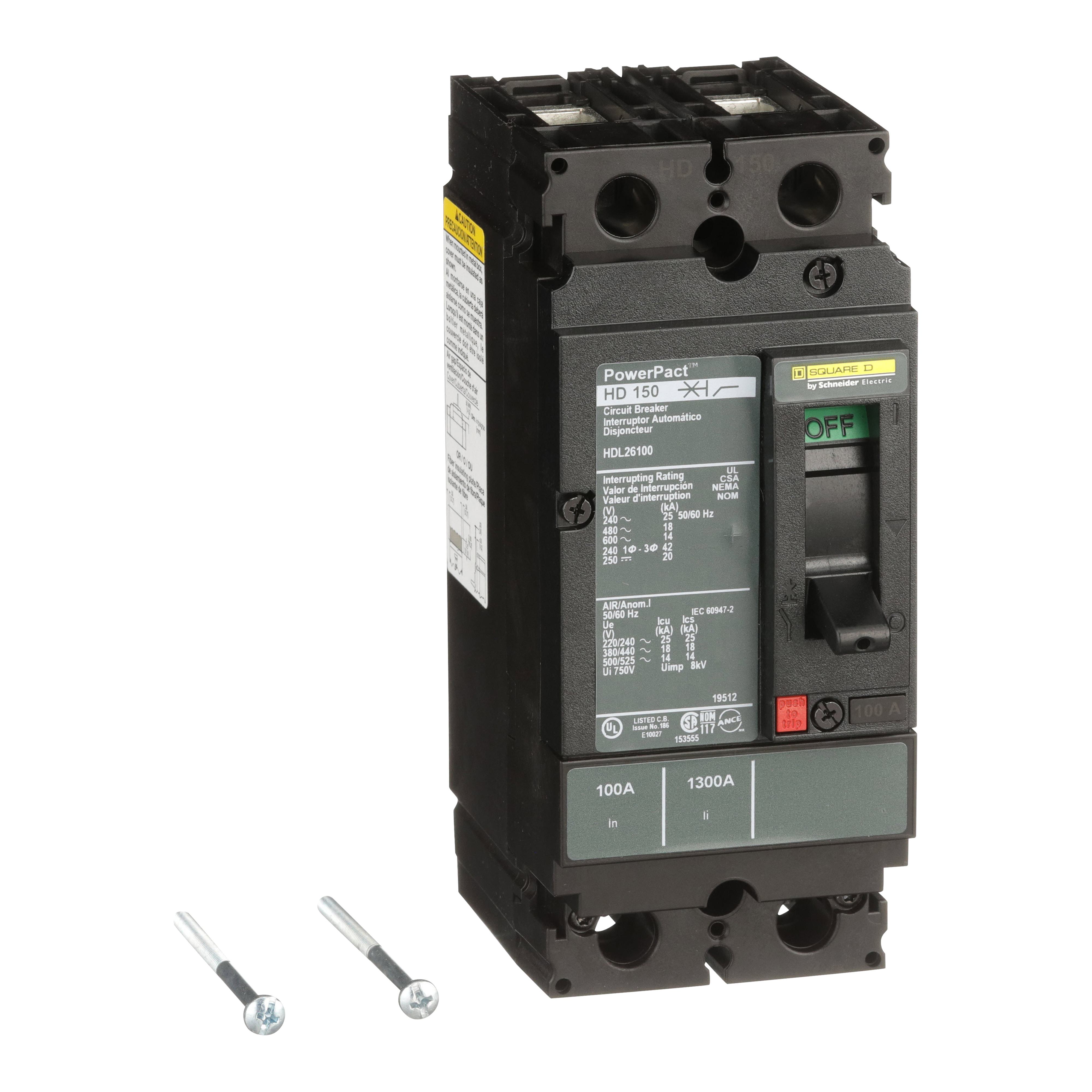

Square D™ PowerPact™ HDL26100 80% Rated Type HDA Molded Case Circuit Breaker, 600 V AC/250 V DC, 100 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 2 Poles, Thermal Magnetic Trip

Sku #78590157794

MFG #HDL26100

Attributes

Type:	80% Rated Type HDA
Amperage Rating:	100 A
Interrupt Rating:	25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC

Voltage Rating:	600 V AC/250 V DC
Frequency Rating:	50/60 Hz
Frame:	H

Buy American Act Compliant|RoHS Compliant|CSA Certified|CCC Certified|CE Certified|IEC Certified|UL Listed|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

For providing overload and short circuit protection

Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
A wide range of accessories, auxiliaries, and lug connections available
