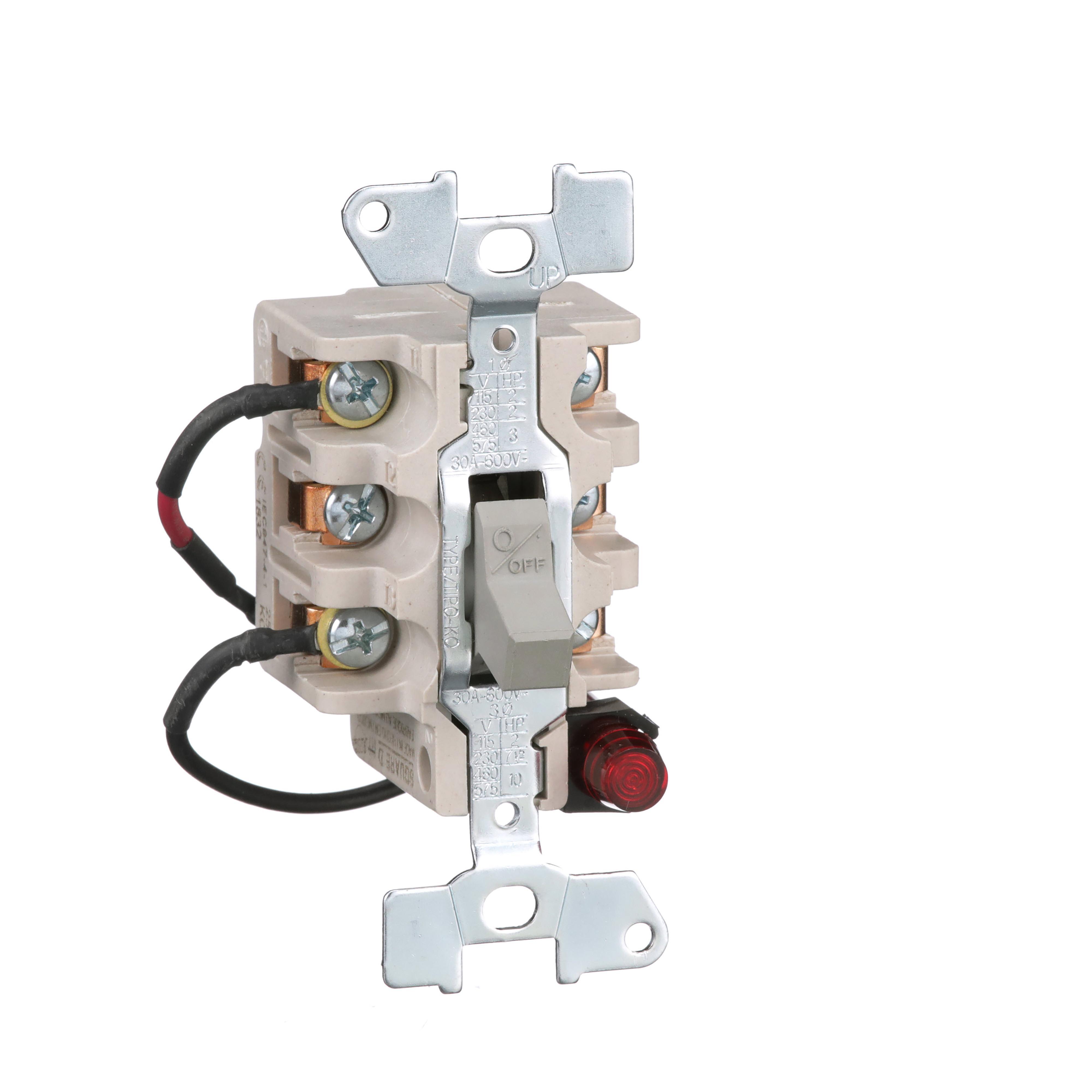

Square D™ 2510KO2C 3-Phase Type K Manual Switch, 600/230 VAC/VDC, 30 A, 2 hp at 115 VAC/7-1/2 hp at 230 VAC/10 hp at 460/575 VAC Power Rating
Sku #78590155460
MFG #2510KO2C
Attributes
| Type: | 3-Phase Type K |
| Voltage Rating: | 600 V AC/230 V DC |
| Power Rating: | 2 hp at 115 VAC/7-1/2 hp at 230 VAC/10 hp at 460/575 VAC |
| Series: | 2510 |
| Amperage Rating: | 30 A |
| Number of Poles: | 3 |
- Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately
- Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately
- Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads
- Two switches are used, one to connect the motor for forward rotation and one for reverse
- Two switches are employed to give "on-off" control in each speed
- Economical on/off solution
- Simple design
- Easy to install
- CE Certified|CSA LR25490 Class 3211-05|ECCN EAR99|UL Recognized E42243 CCN NLRV2|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
- Simple Machine Control, HVAC, Self-Protected Motors and 3 ph AC Motors rated up to 20 hp
