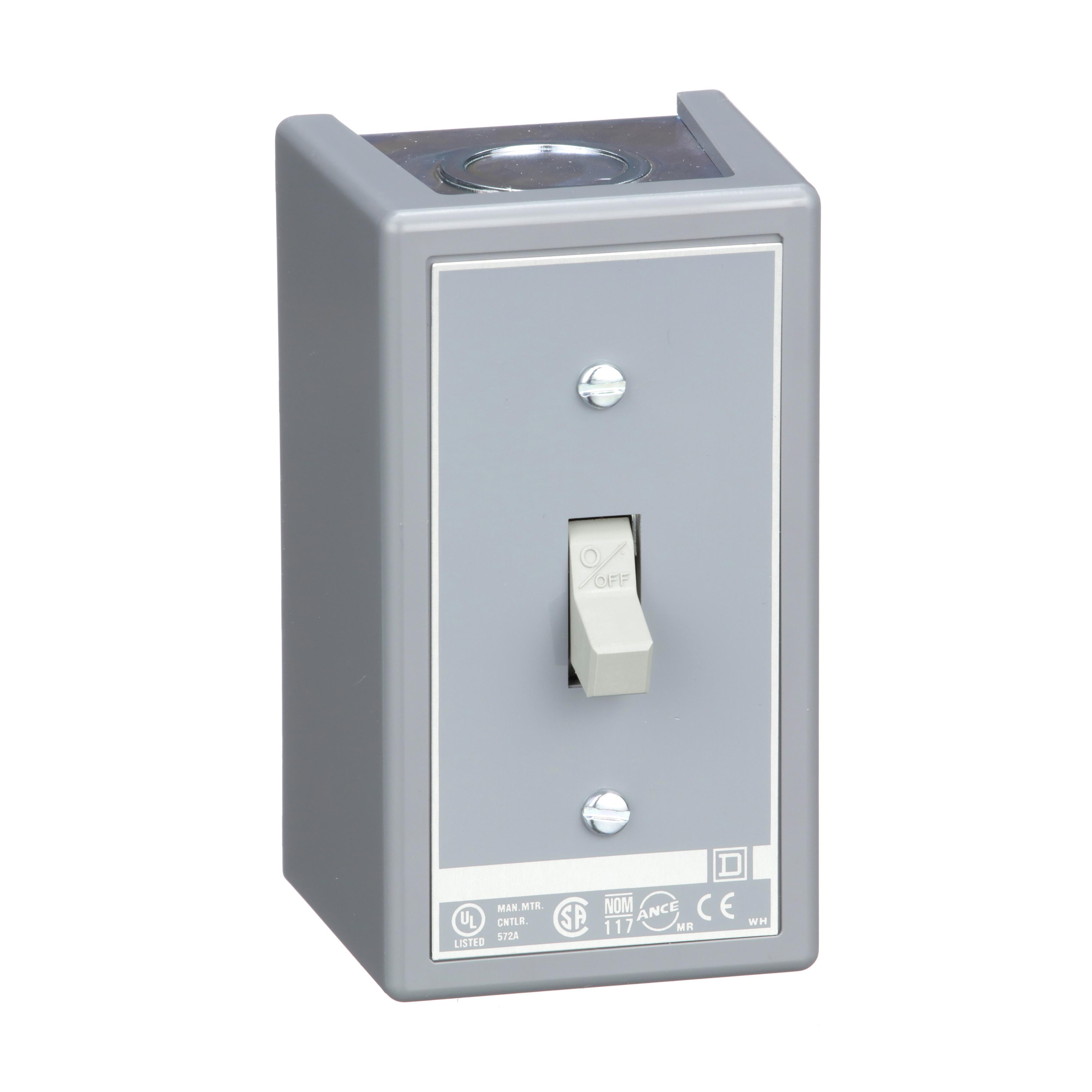

Square D™ 2510KG1 Type K 1-ph 1-Unit Standard Manual Switch, 600 VAC, 230 VDC, 30 A, 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VAC/115 VDC/230 VAC/3 hp at 460 VAC/575 VAC Power Rating
Sku #78590155447
MFG #2510KG1
Attributes
| Type: | Type K 1-ph 1-Unit Standard |
| Voltage Rating: | 600 V AC/230 V DC |
| Power Rating: | 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VAC/115 VDC/230 VAC/3 hp at 460 VAC/575 VAC |
| Series: | 2510 |
| Amperage Rating: | 30 A |
| Number of Poles: | 2 |
- CCN Certified|CE Certified|CSA File No. LR25490 Class 3211-05|ECCN: EAR99|NLRV Certified|UL File No. E42243|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- For providing manual ON/OFF control of 1 or 3-phase AC motors where overload protection is not required or provided separately and general purpose applications
- These switches come in various different NEMA enclosures type
- Simple design, small size and easy to install
