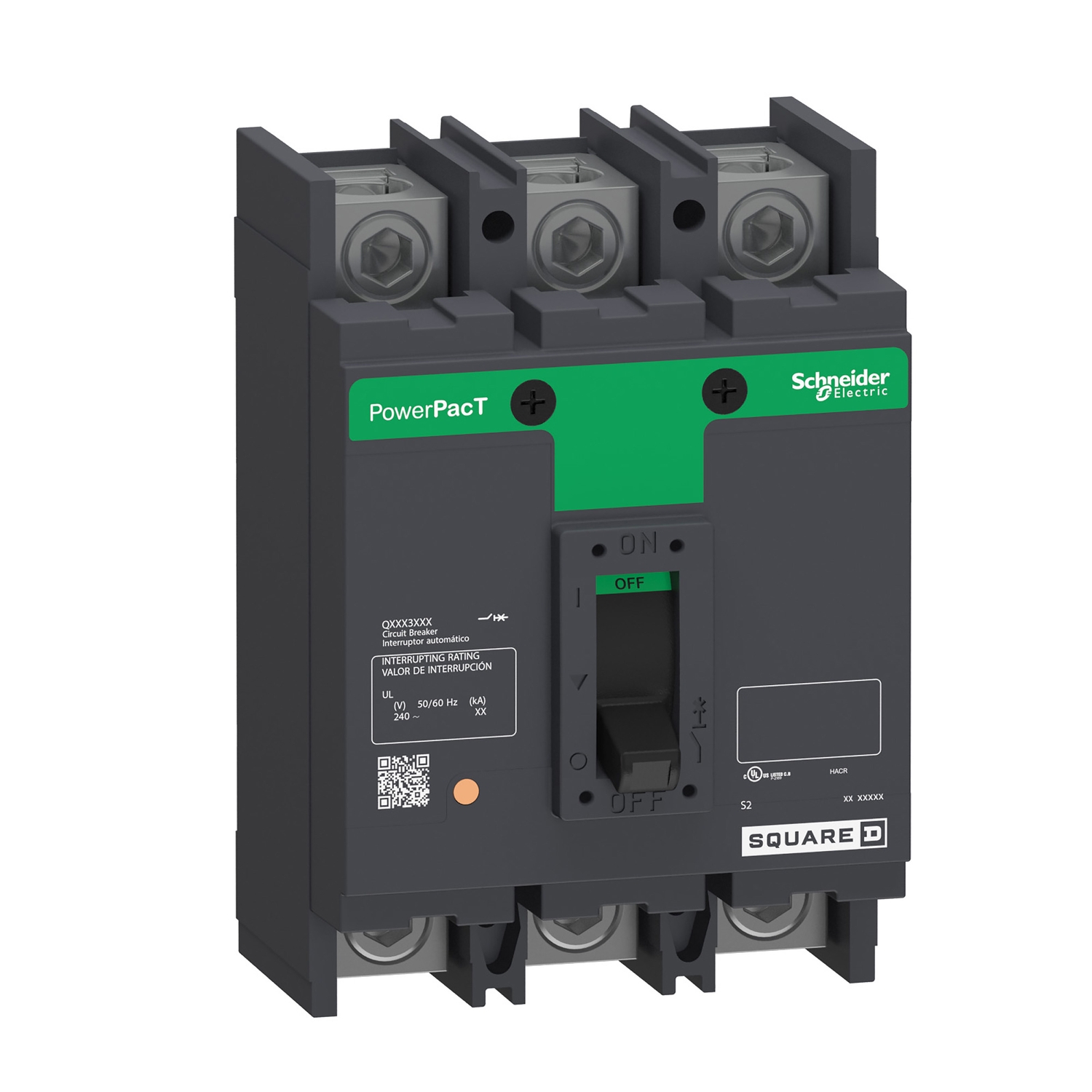

Square D™ QBP32200TP Circuit Breaker, 208Y/120 V AC, 200 A, 3 poles, Thermal Magnetic trip
Sku #78590154671
MFG #QBP32200TP
Attributes
| Type: | Circuit Breaker |
| Amperage Rating: | 200 A |
| Number of Poles: | 3 |
| Voltage Rating: | 208Y/120 V AC |
| Trip Type: | Thermal Magnetic |
| Connection Type: | Lugs |
- QB, QD, QG and QJ molded case circuit breakers and QB automatic switches
- PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC|UL Listed|CSA
- Available in 2-3 pole design
- Available from 75-250A at up to 240 Vac
- Interrupting ratings (AIR) include B-10 kA, D-25 kA, G-65 kA and J-100 kA at 240 Vac. 3P QJ are rated at 208Y/ 120 Vac only
- Available in standard (80%) rating only
- Field-installable handle padlock attachment available for locking in On or Off position and may be used with available mechanical interlocks
- Available in Unit-mount for cabled or bus-mounted applications or I-line for use in I-line panel boards and switchboards
- 2-3 pole automatic molded case switches available at 225A
- 80 % continuous current rating
- 1200 A magnetic hold current
- 2400 A magnetic tripping current
- With pvc free
- Halogen free product halogen content performance
- For the Q2 Series device, For 3-pole 100 kA, For cabled applications or with mounting studs for bus-mounted applications, For 240 Vac
- 18 months
