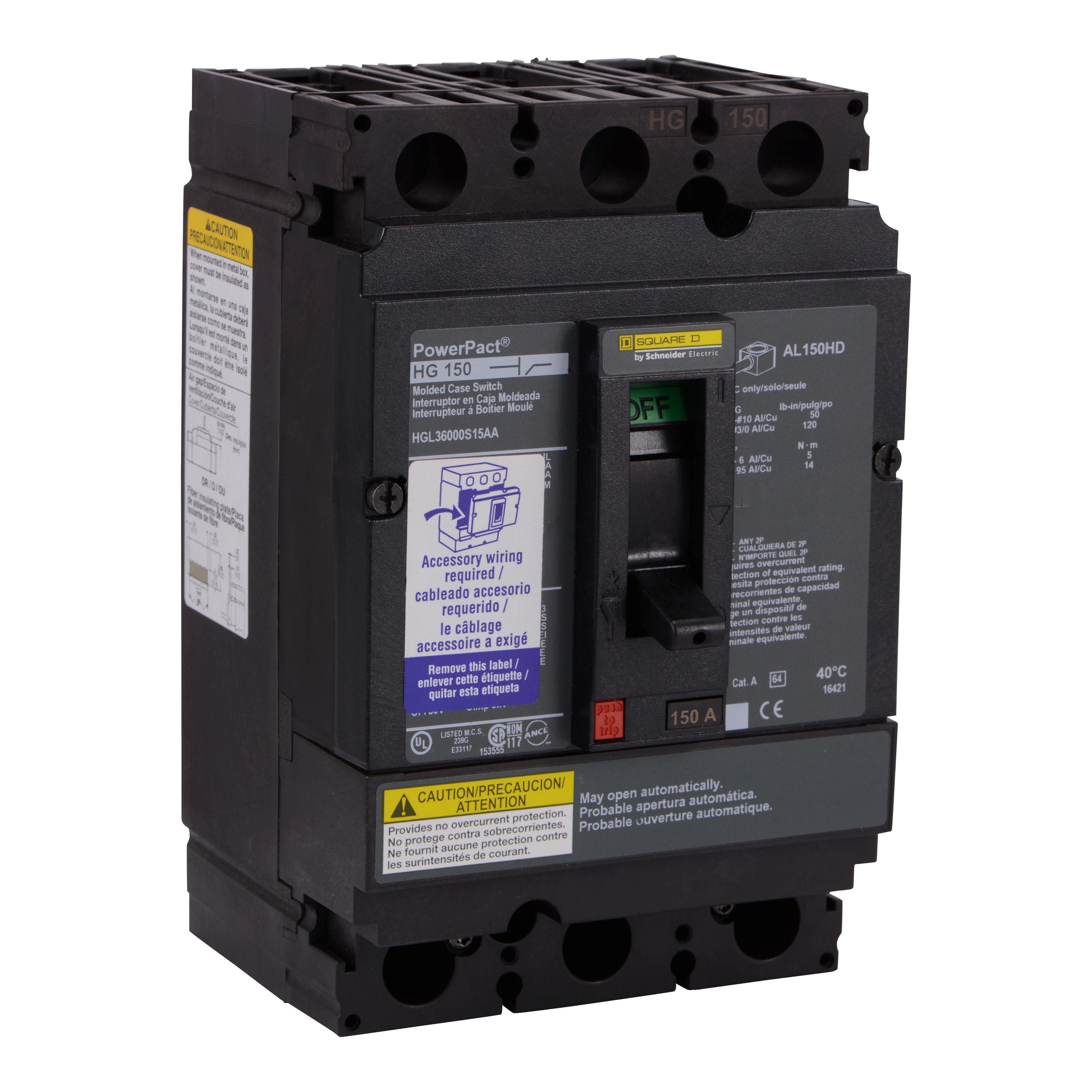

Schneider Electric I-Line™ PowerPact™ HGL36000S15SA Automatic Molded Case Switch, 600 VAC, 150 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #78590152051
MFG #HGL36000S15SA
Attributes
| Type: | Automatic |
| Amperage Rating: | 150 A |
| Interrupt Rating: | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | H |
- To open and close a circuit under normal operating conditions
- Can make and break its rated current
- Factory set nonadjustable trip point to protect the molded case switch
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/watch?v=1PjFQgO_-Ik&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
- Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications
- RoHS Compliant|CSA C22.2 No. 5 File No. LR32390|CE Certified|Federal Specification W-C-375B/GEN|IEC 60947-3|UL 489 File No. E87159|PROP65
