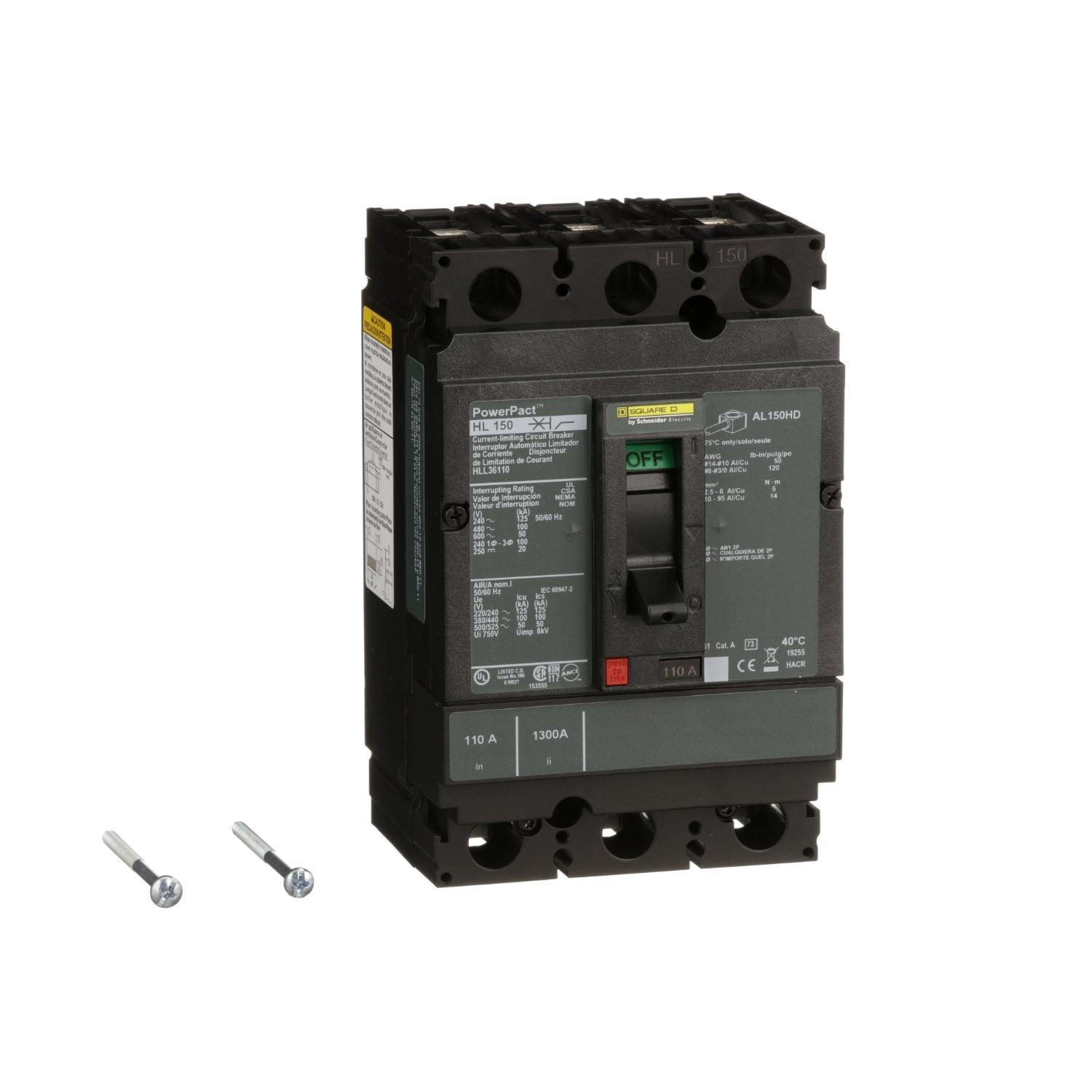

Square D™ I-Line™ PowerPact™ HLL36110 80% Rated Type HLL Molded Case Circuit Breaker, 600 V AC/250 to 500 V DC, 110 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC/250 VDC/500 VDC/600 VAC Interrupt, 3 Poles
Sku #78590143378
MFG #HLL36110
Attributes
| Type: | 80% Rated Type HLL |
| Amperage Rating: | 110 A |
| Interrupt Rating: | 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC/250 VDC/500 VDC/600 VAC |
| Voltage Rating: | 600 V AC/250 to 500 V DC |
| Frequency Rating: | 50/60 Hz |
| Frame: | L |
- Standard 80% or 100% rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/watch?v=ja3DCvAs9M4
- Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses, Industrial Markets, Power Meters, Operating Assistance, Front Display Modules, Communication Networks, Overload and Short Circuit Protection
- Buy American Act Compliant|RoHS Compliant|UL 498 File No. E10027|CSA C22.2 #5 File No. LR40970|CCC/CE Marked|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NOM Certified|HACR Rated|ECCN EAR99|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Square D™Square D™ I-Line™ PowerPact™ HLL36110 80% Rated Type HLL Molded Case Circuit Breaker, 600 V AC/250 to 500 V DC, 110 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC/50 kA at 500 VDC/250 VDC/500 VDC/600 VAC Interrupt, 3 Poles
SKU #78590143378
MFG #HLL36110
