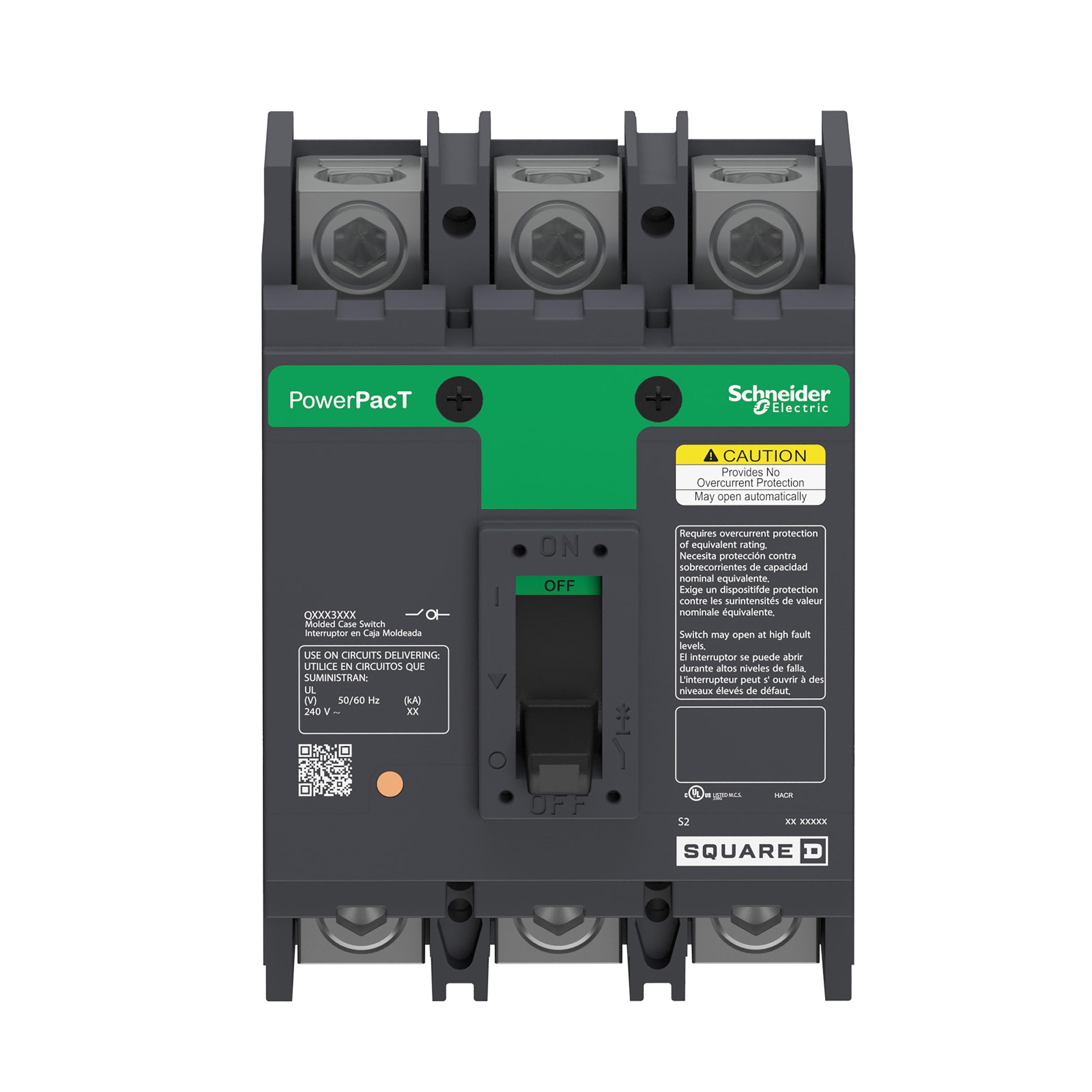

Square D™ PowerPact™ QBL32000S22 Automatic Molded Case Switch, 240 V AC, 225 A, 10 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC Interrupt, 3 Poles, Magnetic Trip
Sku #78590141785
MFG #QBL32000S22
Attributes
| Type: | Automatic |
| Amperage Rating: | 225 A |
| Interrupt Rating: | 10 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC |
| Voltage Rating: | 240 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | Q |
- To open and close a circuit under normal operating conditions
- Can make and break its rated current
- Factory set nonadjustable trip point to protect the molded case switch
- A wide range of accessories, auxiliaries, and lug connections available
- RoHS Compliant|CSA Certified|IEC Certified|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
