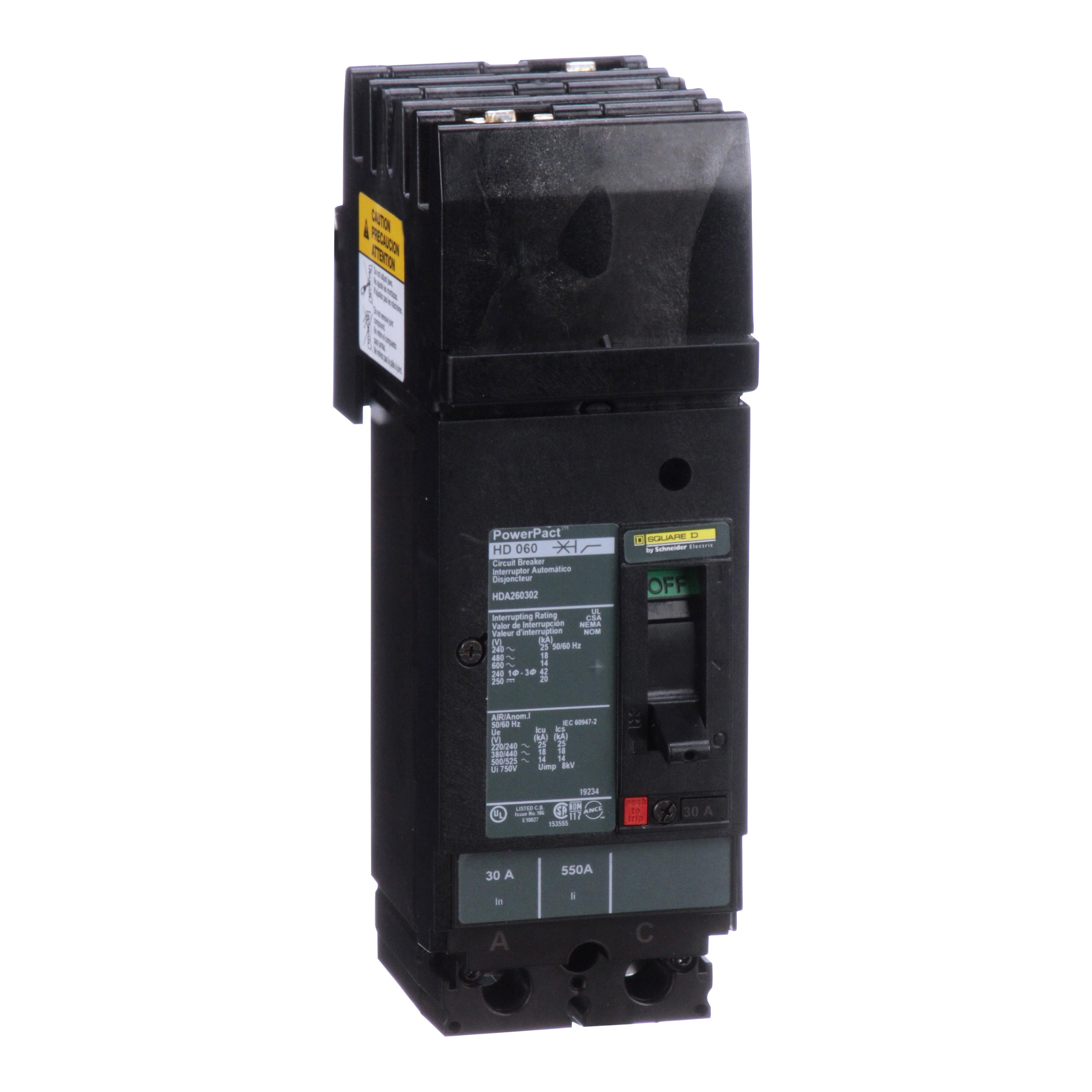

Square D™ I-Line™ PowerPact™ HDA260302 80% Rated Type HDA Molded Case Circuit Breaker, 600 V AC/250 V DC, 30 A, 18 kA at 480 VAC/25 kA at 240 VAC/14 kA at 600 VAC/20 kA at 250 VDC/250 VDC/600 VAC Interrupt, 2 Poles, Thermal Magnetic Trip
Sku #78590141645
MFG #HDA260302
Attributes
| Type: | 80% Rated Type HDA |
| Amperage Rating: | 30 A |
| Interrupt Rating: | 18 kA at 480 VAC/25 kA at 240 VAC/14 kA at 600 VAC/20 kA at 250 VDC/250 VDC/600 VAC |
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50/60 Hz |
| Frame: | D |
- Standard 80% or 100% rating
- Available in Unit mount, I-line or Drawout constructions
- A wide range of accessories, auxiliaries, and lug connections available
- QR codes for easy access to device documentation
- https://www.youtube.com/embed/ja3DCvAs9M4
- Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses, Industrial Markets, Power Meters, Operating Assistance, Front Display Modules, Communication Networks, Overload and Short Circuit Protection
- RoHS Compliant|UL 498 File No. E10027|CSA C22.2 #5 File No. LR40970|CCC/CE Marked|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NOM Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
