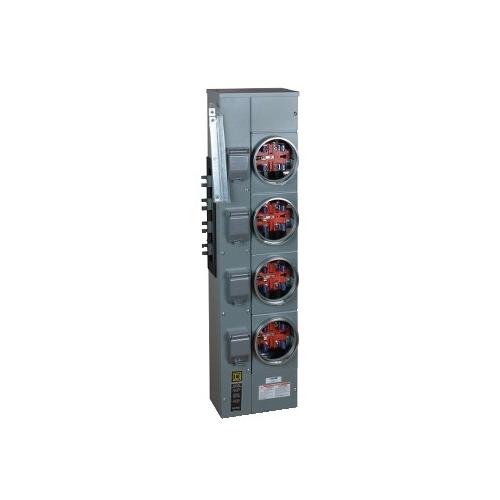

Square D™ Meter-Pak™ EZM314125 4-Position 4-Wire Meter Center Branch Unit, 120/208Y V AC, 125/800 A, 1/3 Phase, NEMA 3R Enclosure
Sku #78590140212
MFG #EZM314125
Attributes
| Type: | 4-Position 4-Wire |
| Voltage Rating: | 120/208Y V AC |
| Phase: | 1/3 |
| Series: | EZM |
| Amperage Rating: | 125/800 A |
| Feed Type: | Overhead/Underground |
- Meter sockets and tenant circuit breaker slots for downstream metering and protection
- 125A, 225A, and 400A units available, ringless or ring type with varied bypass options
- 800A horizontal busbar standard (1200A busbar optional)
- Corner, elbow, transition, and bus extensions create system design flexibility
- NEMA Type 3R for outdoor and indoor installation
- Unique field phase-balancing allows easy on-site changing of phase-balancing (standard on all 3 PH IN-1 PH OUT units)
- For service equipment
- UL Listed
