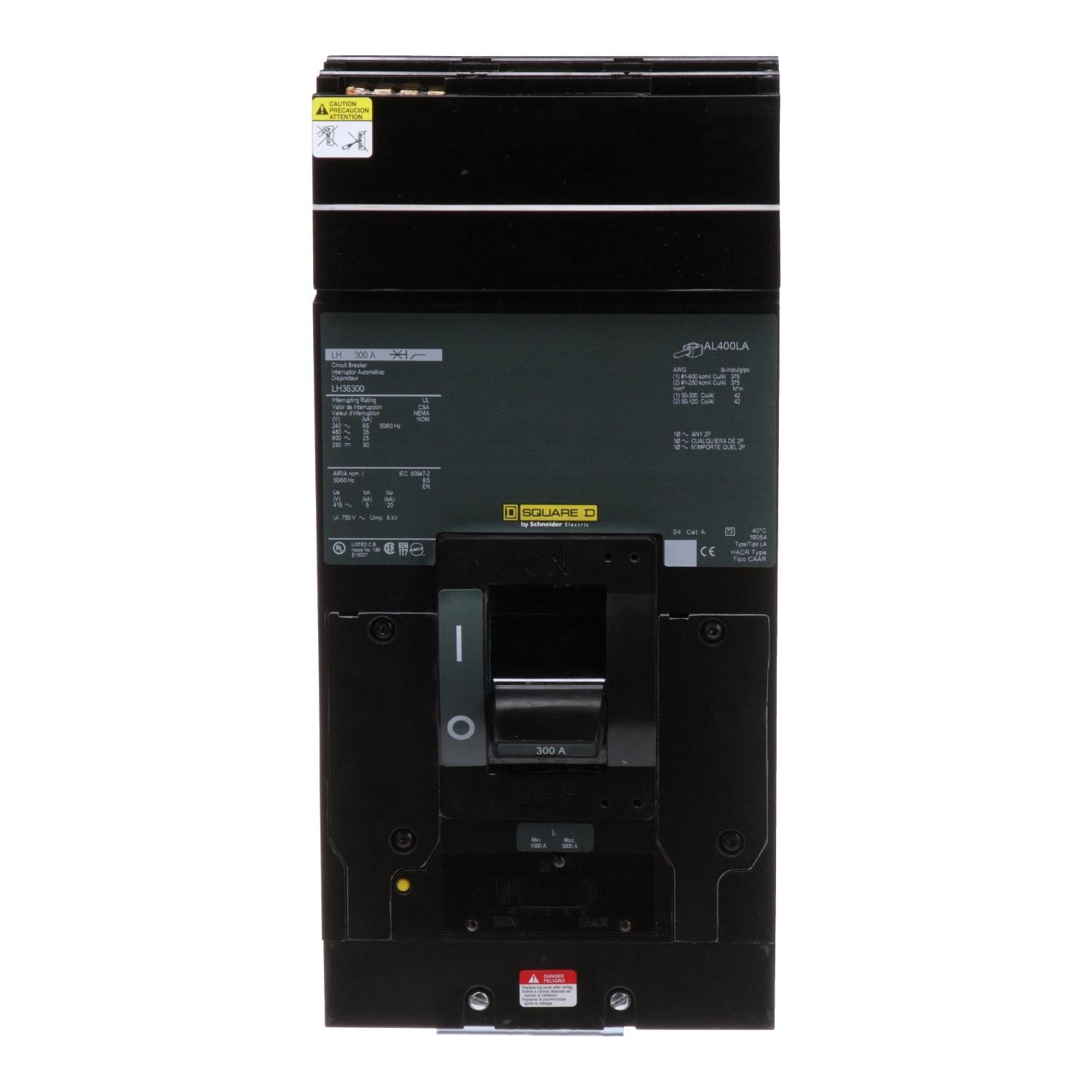

Square D™ I-Line™ LH36300 Molded Case Circuit Breaker, 600 V AC/250 V DC, 300 A, 25/35/50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #78590133941
MFG #LH36300
Attributes
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50/60 Hz |
| Frame: | L |
| Amperage Rating: | 300 A |
| Interrupt Rating: | 25/35/50/65 kA |
| Trip Type: | Thermal Magnetic |
- Thermal magnetic protection up to 300A at 600VAC
- Interrupting rating of 25kA at 600VAC
- LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole
- I-Line on the line side and lugs on the load side
- Industrial Panelboard, Switchboard and Enclosure Applications
- RoHS Compliant|UL Listed|CSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
